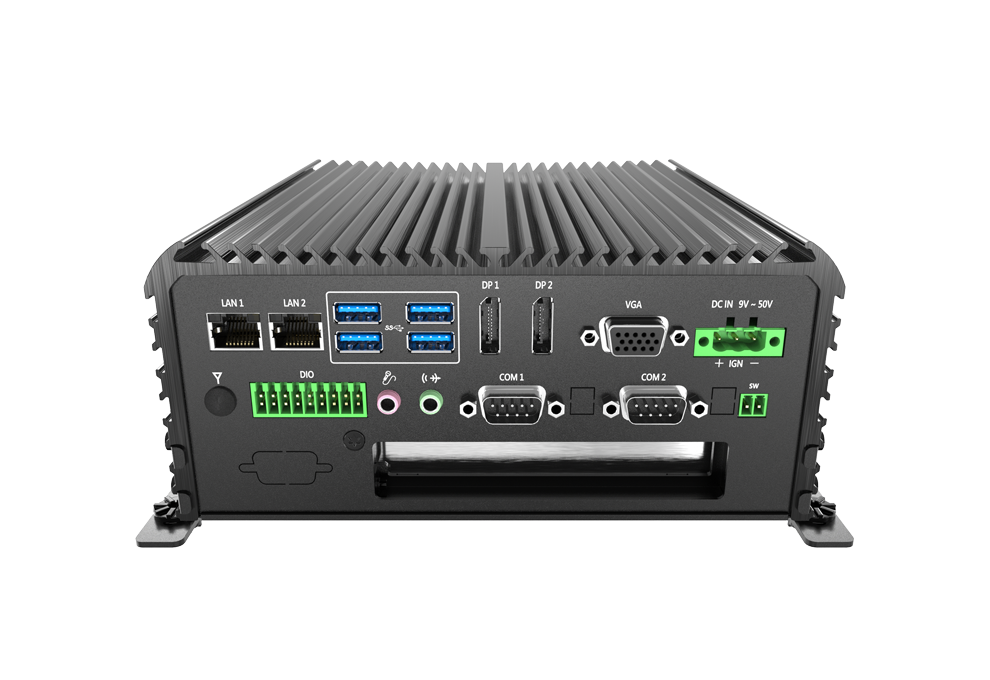

RCO-3411E

Based on Intel® Core™ i5-7300U / i3-7100U, Dual Core processor, RCO-3400 series is an extreme features integration, outstanding system performance, versatile I/O connections, and rugged reliability fanless embedded systems. It offers modularize expansion I/O, rich connectivity interfaces, wide range (9~50V) DC power input, and high reliability even operating in temperature extremes (-40°C ~ +70°C).

Featuring with completely cable-less designed, high functional, one-piece housing design, and anti-vibration, RCO-3400 series are ruggedized systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reserve voltage protection, and wide range DC power input makes RCO-3400 series are safety system for all industrial applications.

System
Processor	7th Gen Intel® Core™ i5-7300U Processor, Dual Core, 3MB Cache, up to 3.5 GHz 7th Gen Intel® Core™ i3-7100U Processor, Dual Core, 3MB Cache, 2.4 GHz
System Chipset	SoC integrated
LAN Chipset	GbE1: Intel® I219LM (Support Wake-on-LAN and PXE) GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)
Audio Codec	Realtek ALC888S
System Memory	1x 260-Pin DDR4 1866/2133MHz SODIMM. Max. up to 16GB
BIOS	AMI 128Mbit SPI BIOS
Watchdog	Software Programmable Supports 1~255 sec. System Reset
TPM	TPM 2.0



Display
VGA	1x VGA
DisplayPort	2x DisplayPort, support resolution 4096 x 2304
Multiple Display	Triple Display



Storage
SSD/HDD	1x Internal 2.5" SATA HDD Bay 1x Removable 2.5" SATA HDD Bay Support Support RAID 0, 1, 5
mSATA	1x mSATA (shared by 1x Mini PCIe)
CFast	1x CFast (shared by 1x mSATA)
SIM Socket	2x External SIM socket



Expansion
Mini PCIe	2x Full-size Mini PCIe
PCI Express	1x PCIe x4 (RCO-3411E only)
PCI	1x PCI (RCO-3411P only)



Operating System
Windows	Windows 10
Linux	Linux kernel 4.X



I/O
COM	2x RS-232/422/485 3x RS-232/422/485 (internal)
USB	4x USB 3.0,  2x USB 2.0
LAN	2x RJ45
Audio	1x Mic-in,  1x Line-out
DIO	8 in / 8 out (Isolated)
Others	4x WiFi Antenna Holes 1x Power Switch,  1x AT/ATX Switch, 1x Remote Power On/Off



Power
Power Mode	AT, ATX
Power Supply Voltage	9~50VDC
Power Ignition Sensing	Power Ignition Management
Power Connector	3-pin Terminal Block
Power Adaptor	Optional AC/DC 12V/5A, 60W
Power Protection	OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection



Environment
Operating Temp.	-40°C to 70°C
Storage Temp.	-30°C to 85°C
Relative Humidity	10% to 95% (non-condensing)
Vibration	With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock	With SSD: 50G, half sine, 11ms
Standards / Certification	CE, FCC Class A



Physical
Construction	Extruded Aluminum with Heavy Duty Metal
Dimension	192 (W) x 197 (D) x 85.1 (H) mm
Weight	2.73 Kg
Mounting	Wall Mounting DIN-Rail Mounting (Optional)



• All product specifications and information are subject without notice.

Available Models
RCO-3411E-7300U	Advanced Fanless Embedded System with Intel® Core™ i5-7300U Processor, 2x LAN, 1x PCIe Expansion Slot
RCO-3411E-7100U	Advanced Fanless Embedded System with Intel® Core™ i3-7100U Processor, 2x LAN, 1x PCIe Expansion Slot
RCO-3411P-7300U	Advanced Fanless Embedded System with Intel® Core™ i5-7300U Processor, 2x LAN, 1x PCI Expansion Slot
RCO-3411P-7100U	Advanced Fanless Embedded System with Intel® Core™ i3-7100U Processor, 2x LAN, 1x PCI Expansion Slot



Ordering Information
1-E09A06008	Adapter AC/DC 12V 5A 60W with 3-pin Terminal Block Plug 5.0mm Pitch
SFICBL022	Power Cord, 3-pin US Type, 180cm
1-TPCD00002	Power Cord, European Type, 180cm
1-TPCD00001	Power Cord, 3-pin UK Type, 180cm



Packing List
1x RCO-3400 Series Embedded System
1x Utility DVD Driver
1x Wall Mount Kit
1x Accessory Kit
