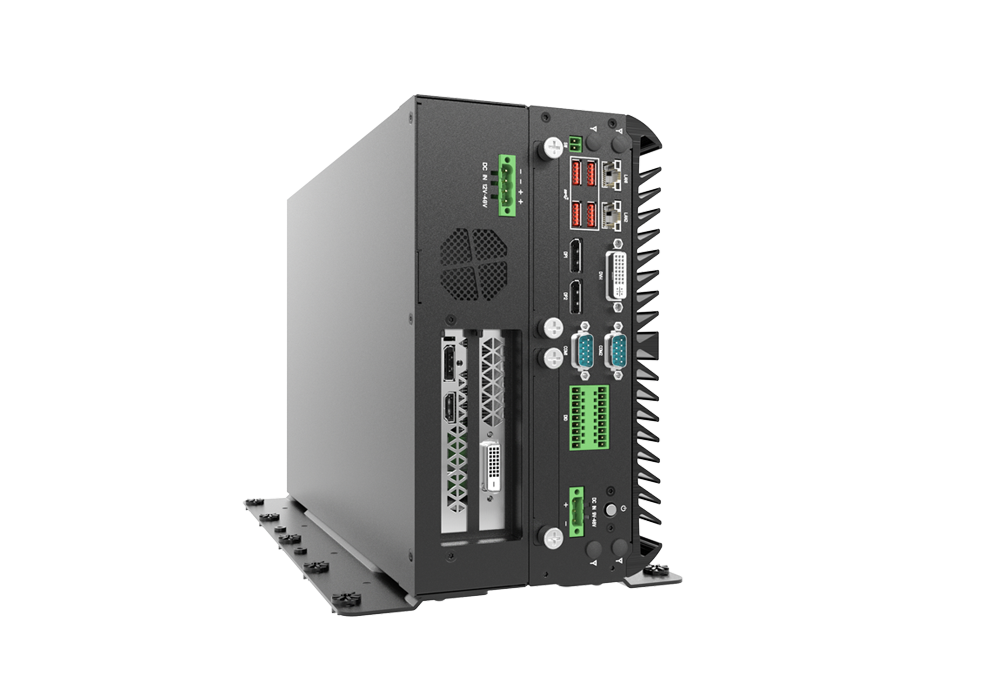

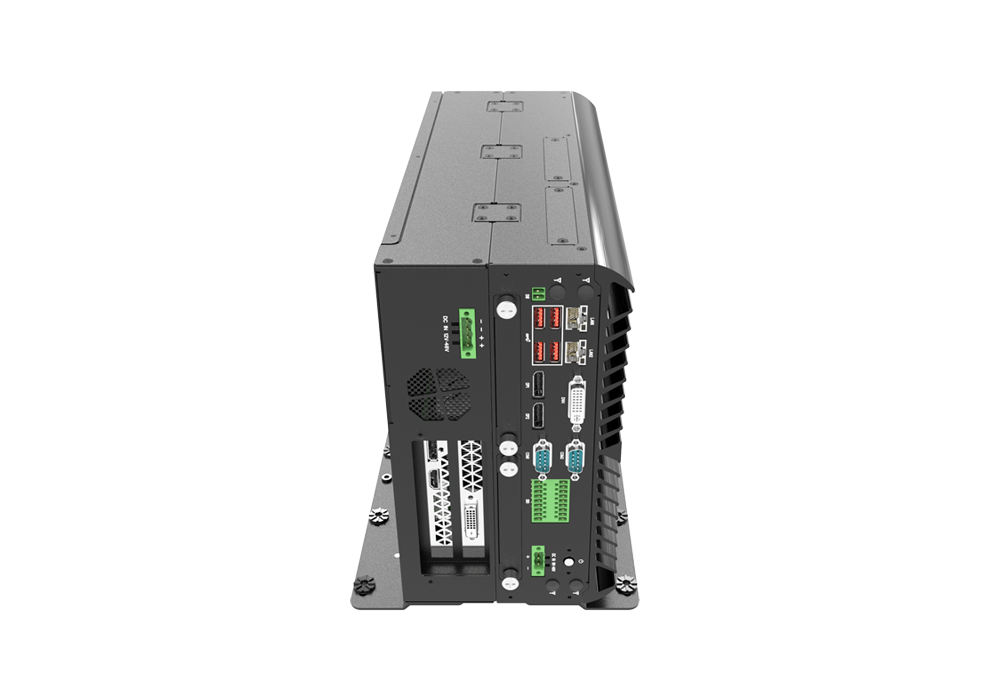

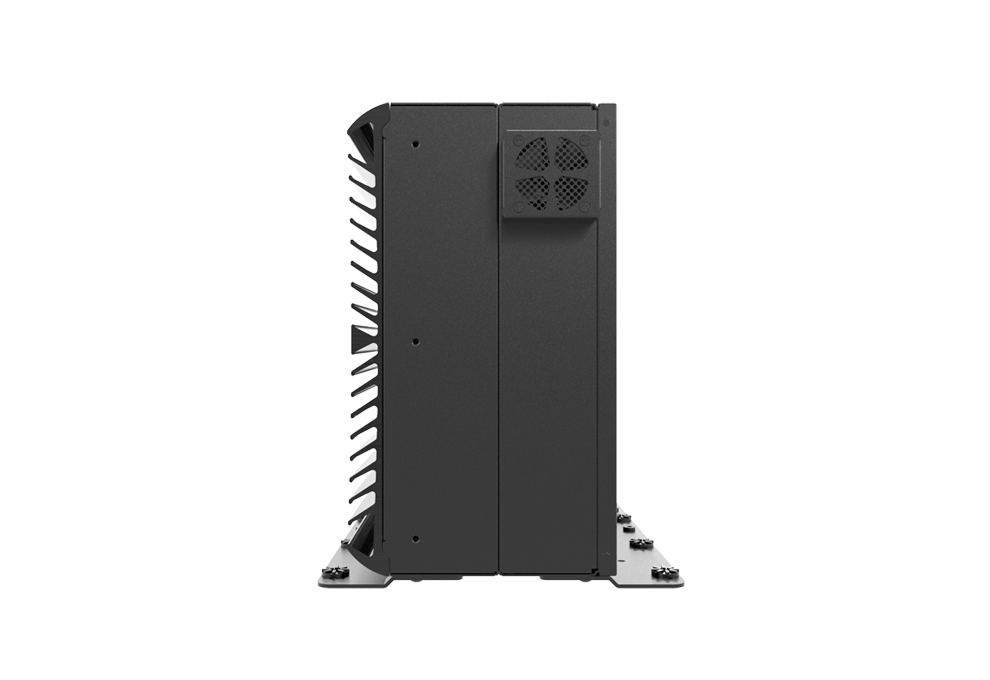

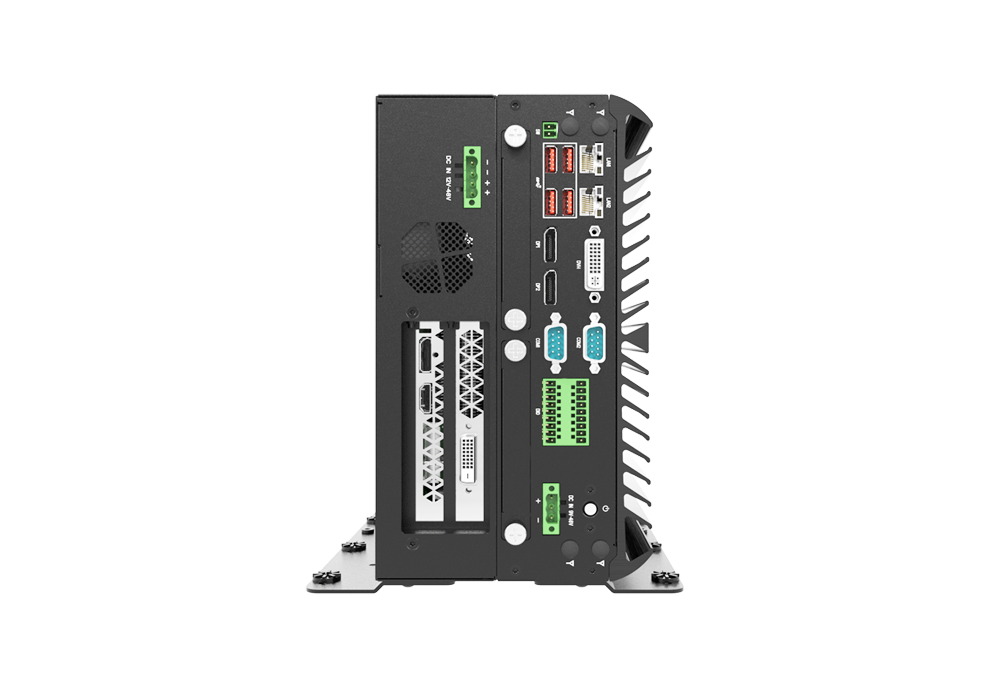

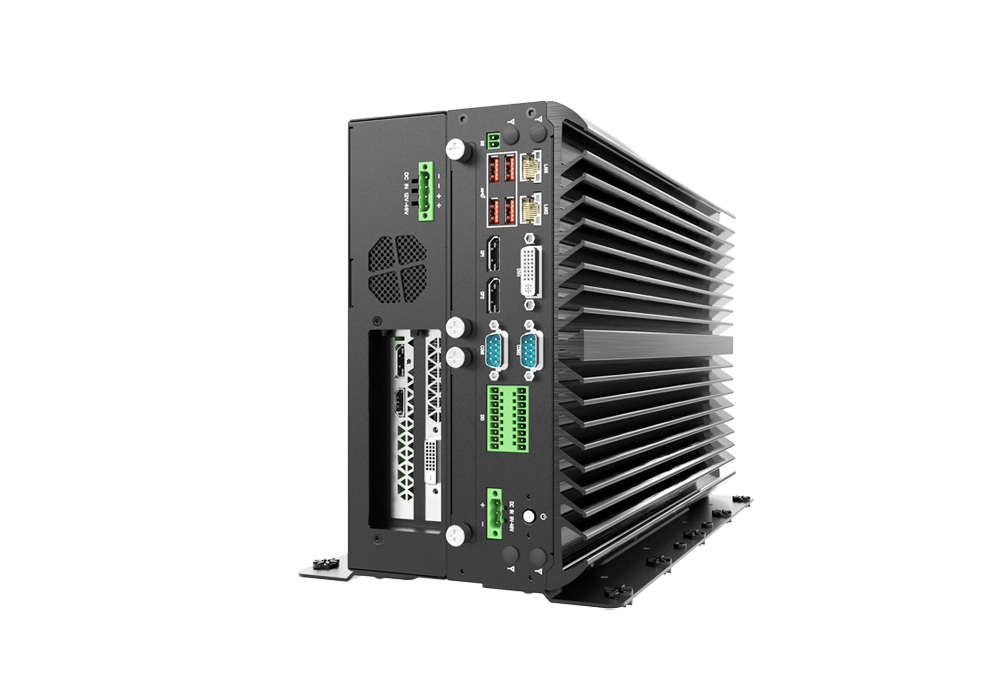

    VCO-6120-2060S

    GPU Computing System with LGA 1151 for Intel 8th/9th Gen CPU & Q370 PCH, RTX 2060 Integrated, 2x Power Input
    FEATURES

    • Support 8th/9th Gen Intel® CFL-R S Processor (LGA 1151, 65W/35W TDP)

    • Intel® Q370 Chipset

    • 6 Display interface supported by 1x DVI-I, 1x DVI-D, 3x DisplayPort, 1x HDMI

    • 2x Intel® GbE supporting Wake-on-LAN and PXE

    • 2x Full-size mini PCIe (shared by 1x mSATA), and 2x SIM socket

    • 4x 2.5” SATA HDD Bay with RAID 0, 1, 5, 10 support, 1x mSATA (Shared by 1x Mini PCIe)

    • 1x M.2 (M Key, NVMe PCIe x4, 2280), 1x M.2 (E Key, PCIe x2, 2230, USB 2.0, Support CNVi)

    • 6x RS-232/422/485 (4x internal)

    • 4x USB 3.2 Gen 2 (10 Gbps), 4x USB 3.2 Gen 1 (5 Gbps, internal)

    • 8x DI + 8x DO with isolation

    • 9 to 48V DC Wide Range Power Input Supporting AT/ATX Mode

    • Wide Operating Temperature (-25°C to 60°C)

    • TPM 2.0 Supported

    Datasheet Add to Cart
    • Overview
      The GPU series adopts 9th Gen. Intel® Core™ i7-9700E (4.4GHz, 8 Cores) / i5-9700E (4.2GHz, 6 Cores) / i3-9100E (3.7GHz, 4 Core) / i7-9700TE (3.8GHz, 8 Cores) / i5-9500TE (3.6GHz, 6 Cores) / i3-9100TE (3.2GHz, 4 Cores) or 8th Gen. Intel® Core™ i7-8700T (4.0GHz, 6 Cores) / i5-8500T (3.5GHz, 6 Cores) / i3-8100T (3.1GHz, 4 Cores) or Pentium® G5400T (3.1GHz, Dual Core) / Celeron® G4900T (2.9GHz, Dual Core) Desktop processor (LGA 1151) which promises breakthrough performance and power efficiency over previous micro-architectures for high performance graphics, dramatic high-resolution video playback, outstanding system performance and responsiveness, and stronger security. It is designed with customers in mind to deliver an excellent system performance, higher reliability and robustness in a compact construction.

      C&T GPU Computing System is your great solution for Machine Vision, Embedded System, Traffic Vision, Telemedicine, Intelligent Control, Deep Learning, Artificial Intelligence, Voice Reorganization and any graphics performance driven Industry 4.0/IIoT applications.
    • Specification
      System
      Processor Support 8th/9th Gen Intel® CFL-R S Processor (LGA 1151, 65W/35W TDP)
      Intel® Core™ i7-9700E, 8 Cores, 12MB cache, up to 4.4 GHz (24V)
      Intel® Core™ i5-9500E, 6 Cores, 9MB Cache, up to 4.2 GHz (24V)
      Intel® Core™ i3-9100E, 4 Core, 6MB Cache, 3.7 GHz (24V)
      Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz
      Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz
      Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz
      Intel® Core™ i7-8700T, 6 Cores, 12MB cache, up to 4.0 GHz
      Intel® Core™ i5-8500T, 6 Cores, 9MB Cache, up to 3.5 GHz
      Intel® Core™ i3-8100T, 4 Cores, 6MB Cache, 3.1 GHz
      Intel® Pentium® G5400T, 2 Cores, 4MB Cache, up to 3.1 GHz
      Intel® Celeron® G4900T, 2 Cores, 2MB Cache, up to 2.9 GHz
      System Chipset Intel® Q370 Express Chipset
      LAN Chipset GbE1: Intel® I219LM (Support Wake-on-LAN and PXE)
      GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)
      System Memory 2x 260-Pin DDR4 2400/2666MHz SODIMM.
      Max. up to 64GB (Un-buffered and Non-ECC)
      BIOS AMI 256Mbit SPI BIOS
      Watchdog Software Programmable Supports 1~255 sec. System Reset
      TPM TPM 2.0

      Display
      Graphics Intel® UHD Graphics 610/630 or NVIDIA GeForce ® RTX 2060 Super
      HDMI 1x HDMI
      DVI 1x DVI-I, 1x DVI-D
      DisplayPort 3x DisplayPort, support resolution 4096 x 2304
      Multiple Display 6 Display interfaces

      Storage
      SSD/HDD 2x Internal 2.5" SATA HDD Bay (support H=9mm)
      2x Removable 2.5" SATA HDD Bay (support H=7mm, hot-swappable),
      Support RAID 0, 1, 5, 10
      mSATA 1x mSATA (Shared by 1x Mini PCI Express)
      M.2 1x M.2 (M Key, NVMe PCIe x4, 2280)
      1x M.2 (E Key, PCIe x2, 2230, USB 2.0, Support CNVi)
      SIM Socket 2x Internal SIM socket

      Expansion
      Mini PCI Express 2x Full-size Mini PCIe (1x shared by 1x mSATA)

      Operating System
      Windows Windows 10
      Linux Linux kernel 5.X

      I/O
      COM 2x RS-232/422/485
      4x RS-232/422/485 (internal)
      USB 4x USB 3.2 Gen 2 (10 Gbps)
      4x USB 3.2 Gen 1 (5 Gbps, internal)
      LAN 2x RJ45
      DIO 8 in / 8 out (Isolated)
      Universal I/O Bracket 2x Universal I/O Bracket (By mini PCIe interface)
      Others 4x WiFi Antenna Holes
      1x Power Switch, 1x Remote Power On/Off

      Power
      Power Mode AT, ATX
      Power Supply Voltage 9~48VDC, 12~48VDC for GPU
      Power Ignition Sensing Power Ignition Management
      Power Connector 3-pin Terminal Block,
      3-pin or 4-pin Terminal Block for GPU
      Power Adaptor Optional AC/DC 24V, 220W/ 280W
      Optional AC/DC 24V, 280W for GPU
      Power Protection OVP (Over Voltage Protection)
      OCP (Over Current Protection)
      Reverse proteceion

      Environment
      Operating Temp. -25°C to 60°C (35 / 65W CPU)
      Storage Temp. -30°C to 85°C
      Relative Humidity 10% to 95% (non-condensing)
      Vibration With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis
      With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
      Shock With SSD: 20G, half sine, 11ms
      Standards / Certification CE, FCC Class A

      Physical
      Construction Extruded Aluminum with Heavy Duty Metal
      Dimension 137 (W) x 340 (D) x 240 (H) mm
      Weight 10.1 kg
      Mounting Wall Mounting / Book mounting (Optional)

      • For 8th/9th CPUs configured to run at 65W, operating temperatures will be limited to 60°C.
      • 65W CPUS may experience thermal throttling depending on extreme application workloads; this is also due to an increase in the physical CPU cores from the Intel silicon (up to 8 cores). Please note, this does not indicate system malfunction or problems in the fanless design. Please consult our embedded engineers for the best configuration to match your application requirements.
      • All product specifications and information are subject without notice.
    • Order Information
      Available Models
      VCO-6120-2060S GPU Computing System with LGA 1151 for Intel 8th/9th Gen CPU & Q370 PCH, RTX 2060 Integrated, 2x Power Input

      Ordering Information
      1-E09A22801 Adapter AC/DC 24V/11.67A 280W with 3-pin Terminal Block Plug 5.0mm Pitch
      1-E09A22102 Adapter AC/DC 24V 9.2A 220W with 3-pin Terminal Block Plug 5.0mm Pitch
      SFICBL022 Power Cord, 3-pin US Type, 180cm
      1-TPCD00002 Power Cord, European Type, 180cm
      1-TPCD00001 Power Cord, 3-pin UK Type, 180cm

      Packing List
      1x VCO-6100 Series Embedded System
      1x Utility DVD Driver
      1x Wall Mount Kit
      1x Accessory Kit
      1x DVI to VGA Adapter
