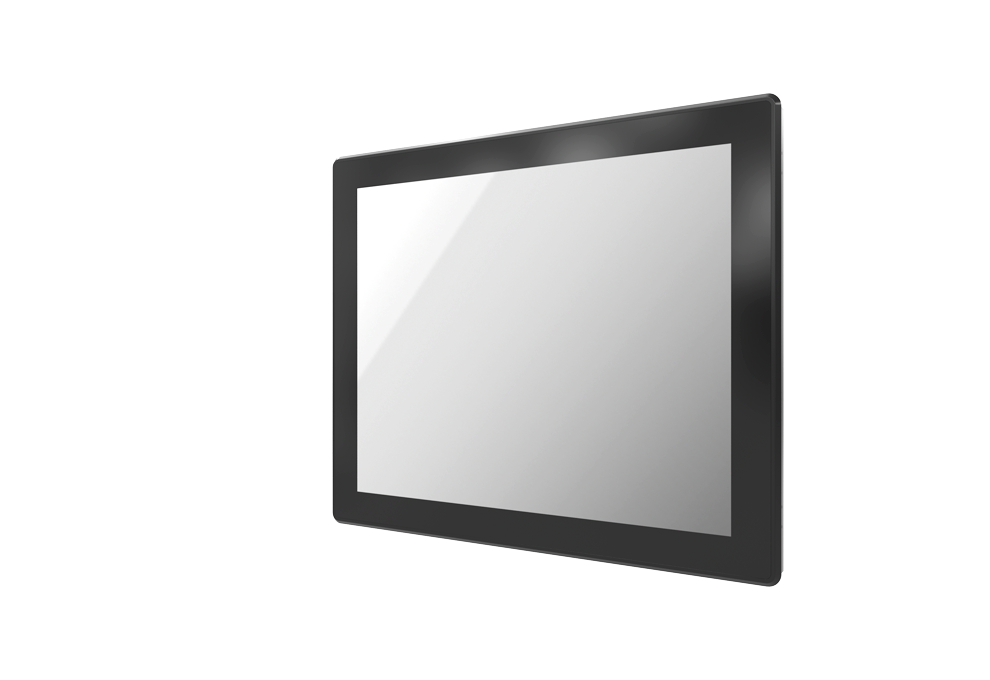

    VIO-217

    17" SXGA Resistive / Capacitive Touch Thin Frame Display Module
    with 2x 10W Speaker
    FEATURES

    • 17” TFT XGA 4:3 LCD with Resistive 5-wire / Capacitive Touch

    • -10°C to 60°C extended operating temperature

    • Designed with Aluminum Die-Casting Front Frame

    • IP65 Compliant Front Panel

    • Two 10W Internal Speakers Built-in

    • Multi-language OSD built-in

    Touch
    Inquiry
    Add to Cart Inquiry Now
    • Overview
      The VIO-100 / VIO-200 series display module features with resistive 5-wire or projected capacitive touch screen, flat surface, IP 65 dust/waterproof front panel, and aluminum die-casting front frame with rugged body structure, it is rugged and reliable for industrial environment. By supporting Multi-Mode Display Module (MDM) technology, enabling VIO-100 / VIO-200 series display module to configure, upgrade and maintain easily.
    • Specification
      Display
      LCD Size 17” (4:3)
      Max. Resolution 1280 x 1024 (SXGA)
      Brightness (cd/m2) 350 / 1000 (Optional)
      Contrast Ratio 800:1
      LCD Color 16.7M
      Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
      Viewing Angle (H-V) 160 / 140
      Backlight MTBF 50000 hrs (LED Backlight)

      Touch
      Resistive 5-wire VIO-217R
      Projected Capacitive VIO-217C

      I/O
      Internal Speaker AMP 10W + 10W
      OSD LCD On/Off, Auto, Menu, Up and Down Multi-language

      Environment
      Operating Temp. -10°C to 60°C
      Storage Temp. -20°C to 70°C
      Relative Humidity 10%~80% (non-condensing)
      IP Level IP 65 Compliant Front Panel

      Physical
      Front Panel Construction Die-cast Flat Surface
      Dimension 407.5 (W) x 339 (D) x 50.5 (H)mm
      Weight VIO-217R: 5.07 kg
      VIO-217C: 4.99 kg
      Mounting VESA Mounting Holes 75 x 75mm, 100 x 100mm

      • All product specifications and information are subject without notice.
    • Order Information
      Available Models
      Model No. Description
      VIO-217R 17" SXGA Resistive Touch Thin Frame Display Module with 2x 10W Speaker
      VIO-217C 17" SXGA Capacitive Touch Thin Frame Display Module with 2x 10W Speaker

      Packing List
      1x VIO-217 Series Display Module
      10x Panel Mount Kit
    • Download
      Datasheet
      VIO-217 Datasheet
      Manual
      VIO Series Display Modules
      User's Manual for VIO-200 and VIO-100 Series Display Modules
