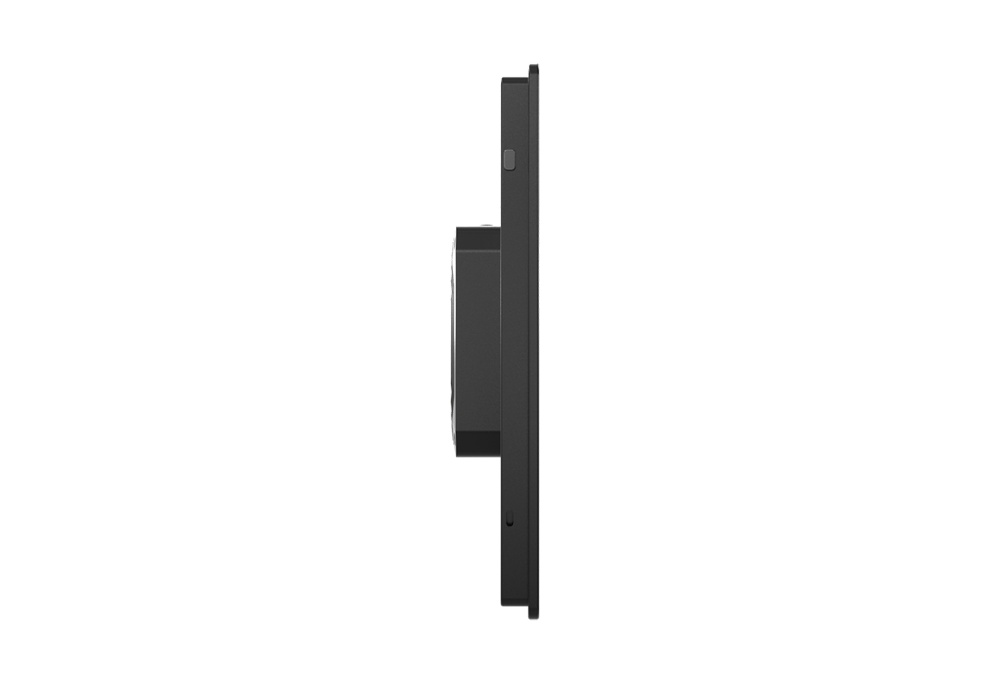

AIO-W215-ASL-3L (NEW)

The AIO Series is a reliable all in one panel PC solution that simplifies HMI solutions with high efficient computing capabilities and advanced I/O connectivity. Designed for simple industrial and commercial applications with its sleek all in one panel design and comprehensive functionality.

Display
IP Rating	Front IP65
LCD Size	15.6" (16:9)
Max. Resolution	1920 x 1080 (Full HD)
Brightness (cd/m2)	400 nits
Contrast Ratio	800:1
LCD Color	16.7M
Pixel Pitch (mm)	0.17925(H) x 0.17925(V)
Viewing Angle (H-V)	85 /85 /85 /85 (Typ.) (CR>=10)
Backlight MTBF	30,000 Hours (LED Backlight)



Touch
Touch Type	Projected Capacitive Touch
Surface Hardness	7H / IK07



System
DisplayPort	• 12th Gen Intel® Alder Lake-N Processor N97, 6M Cache, up to 3.60 GHz, 4 core 12W • Intel® Atom® x7835RE Processor 6M Cache, up to 3.60 GHz, 8 core 12W
System Chipset	SoC integrated
System Memory	1x 262-Pin DDR5 4800MHz SO-DIMM. Max. up to 16GB (Non-ECC)
LAN Chipset	GbE1~3: Intel i226V 2.5GbE LAN PXE Support
Audio Codec	Realtek ALC897 High Definition Audio CODEC
BIOS	AMI uEFI 256MB SPI flash
Watchdog	Software Programmable Supports 1~255 sec. System Reset
TPM	TPM2.0



Storage
M.2 B Key	128G M.2 B Key NVMe SSD (Default)
SATA	1x SATA 3.0 6Gb/s port Support AHCI (Option)



Expansion
M.2	1x M.2 E Key Support WiFi 6E/Bluetooth (Option) 1x M.2 B Key Support NVMe/4G/5G (Option)



I/O
DisplayPort	1x DP 1.4a up to 4096×2304 @60Hz
HDMI	1x HDMI™ 1.4b up to 3840x2160 @30Hz
COM	COM 1: RS-232/422/485 COM 2: RS-232
USB	2x USB 3.2 Gen 2 (10 Gbps)
LAN	3x 2.5GbE LAN
SIM	1x Dual Nano SIM
Others	Support up to 6x Antenna (optional)



Operating System
Windows	Windows 10 / Windows 11
Linux	Linux Ubuntu 22.04



Power
Power Adapter	60W (12V 5A, Default)
Power Supply Voltage	DC 12~36V
Power Connector	DC Jack 5.5mm/2.5mm



Environment
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Relative Humidity	10% to 80% (non-condensing)
Certification	CE, FCC Class A, CB, UL Listed, UKCA, IC
Vibration	With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock	With SSD: 20G half-sin 11ms



Physical
Dimensions	400 (W) x 249 (H) x 50 (D) mm
Weights	2.3 kg
Mounting	VESA Mount (75mm x 75mm/100mm x 100mm) Panel Mount (optional)



• All product specifications and information are subject without notice.

Available Models

Model No.	Description
AIO-W215-3L-N97	15.6" Full HD Capacitive All IN One Touchscreen Computer with Intel® Alder lake N97 Processor, 3x 2.5 GbE LAN
AIO-W215-3L-X7835RE	15.6" Full HD Capacitive All IN One Touchscreen Computer with Intel® x7835RE Processor, 3x 2.5 GbE LAN


Optional Accessories

Model No.	Description
1-E09A06012	Adapter Output 12V 5A 60W / Input 100-240V
3-WIFI0801S10	WIFI 6E Module KIT, Intel, 2T2R & BT 5.3
1-TCOM00041	COM cable (CT-240125-01/CHEN PERNG)
3-AI156040S10	AIO-W215 Panel Mount Bracket Kit
1-TPWR00118	3P Terminal Block(Female) To DC Plug 5.5x2.5 With Lock_100 mm_For AIO Series
1-TLAN00028	LAN Male to Female CABLE /CAT6 A LAN Cable_8P/8C_80mm



Packing List
1x AIO-W215-ASL-3L Series Touchscreen Computer
1x Adapter Output 12V 5A
1x 128G M.2 B key SSD
1x 8GB DDR5 4800 MT/s
