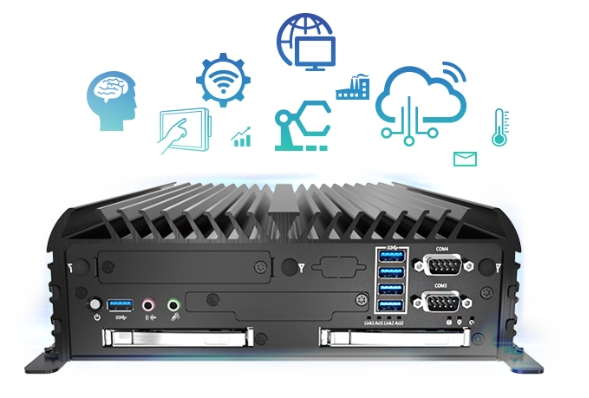

Fanless Industrial PC
    The RCO-6100 Industrial Computer Series bring vigorous performance to rigorous settings.  These industrial edge computers enable Intel®’s 9th Gen (codename: Coffee Lake Refresh) and Q370 chipset PCH advanced processing in volatile, demanding and mobile deployments.  The series support rich processing, future-ready storage technology, and rapid connectivity for more reliable, efficient processing at the rugged edge.




    8th/9th Gen Intel™ Core™ Processors

    The Intel® 8th / 9th Gen. CFL-R S Processors and Q370 chipset technologies’ processing power and IoT support enable low-latency, complex inference analysis in challenging settings.

    • Up to eight hyperthreading core

    • Up to 12MB cache; up to 4.4 GHz

    • Intel® UHD Graphics 610/630




    Rich I/O Interface



    USB

    • 4x USB 3.2 Gen2
    • 5x USB 3.2 Gen 1
    • 2x USB 2.0 (Internal Header)

    COM Ports

    • 4x RS-232/422/485 (External)
    • 2x RS-232/422/485 (Internal)

    DB9 & Universal Bracket

    • 2x DB9 For Internal COM or CAN
    • 1x Universal Bracket

    Connectivity

    • 2x GBE
    • 5x Antenna (2x Wifi, 2x LTE, 1x GPS)



    Built Rugged. Built Ready.

    TPM 2.0 for password protection, device authentication and future-ready cybersecurity

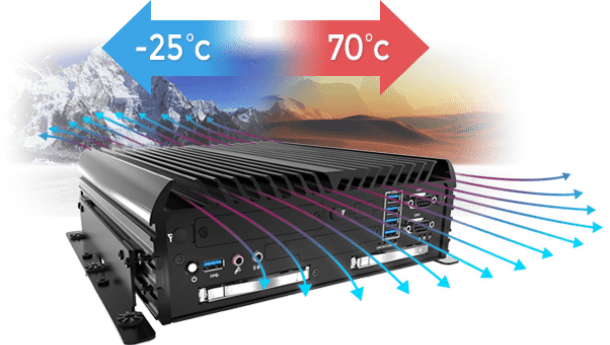

    • Fanless cooling eliminates failure points

    • 50G shock and 5 Grms vibration tolerance

    • Wide 9 to 48VDC voltage input

    • Power Ignition Management safely powers down after engine shutoff

    • TPM 2.0 for password protection, device authentication and future-ready cybersecurity

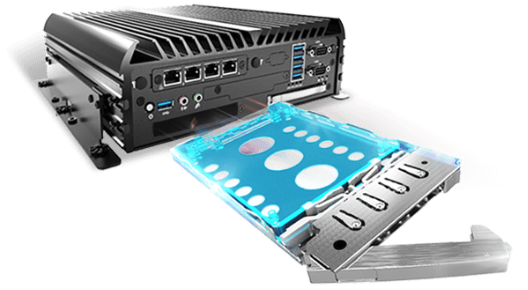

    IoT Data Storage Adaptability

    Two internal SATA SSD/HDD drives in the RCO-6100 Industrial Computer Series are joined by two additional external SATA SSD/HDD bays as a scalable RAID.  The external 2.5” bays permit toolless, hot-swappable replacement of the SATA drives, simplifying service and capacity upgrades. 

    Power Ignition Management

    Intelligent transportation deployments can harness the power of advanced computing and automation safely through the RCO-6100 Series’ power ignition management feature. The rugged edge computer safely powers down after engine shutoff following a predetermined interval. The feature ensures applications close properly and data is neither lost nor corrupted.

    Universal I/O Modules for Wide Expandability and Connectivity

    The RCO 6100 Industrial Computer Series support rich expandability to boost wireless connectivity, streamline integration and unlock automation capabilities in harsh deployments. Leading edge and legacy technologies are easily incorporated into a powerful, intelligent IoT solution.



    Industrial PC Powers Automation and Intelligent Computing
