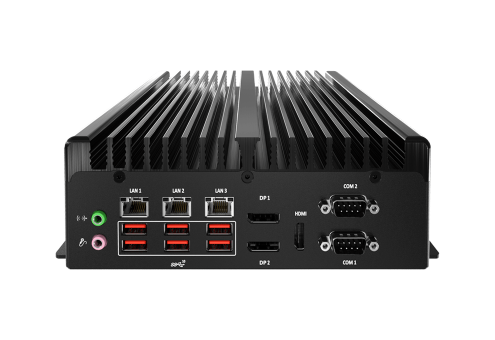

BCO-1000-ADLN Series

    Semi-Rugged Fanless Industrial Mini Computer

    The BCO-1000-ADLN is an ultra-compact fanless mini computer that balances performance, connectivity, and low-power efficiency for space-limited edge computing deployments. It leverages the latest edge computing technologies to streamline and consolidate industrial workloads for real-time insights.

    • 12th Generation Intel Alder Lake-N N97 Processor (12W TDP)
    • Intel NUC Mini PC Alternative
    • Ultra compact size for space constrained applications
    • Semi-rugged industrial grade design





    Fanless Design

    Rich I/O

    Wide Temperature

    Shock and Vibration Resistance

    TPM 2.0 Security

    Intel® NUC Alternative

    Industrial Alternative To The Intel NUC: Fanless Mini PCs



    Looking for an industrial-grade alternative to the Intel® NUC? C&T’s rugged and fanless mini PCs provide the same x86 Intel architecture with even more flexibility, reliability and embedded longevity.

    • Fanless Rugged Design
    • IIoT-Centric I/O
    • 15-year embedded product support lifecycle

    12th Gen Intel® Alder Lake-N Processor

    Leverage the latest x86 silicon from Intel to deliver powerful processing power with low power consumption and efficiency.

    Processor

    Intel Processor N97

    Cores

    4

    Max TDP

    12W

    CPU Max Turbo Frequency

    3.60 Ghz

    Graphics Max Dynamix Frequency

    1.20 Ghz

    Intel UHD Graphics

    24 EUs

    High-Speed DDR5 Memory



    Blazing fast DDR5 integration ensures stable and high-speed performance, vital for handling the rigorous demands found at the rugged edge. When compared to its predecessor, DDR5 memory delivers higher performance and power efficiency.

    • +50% Increase in Bandwidth
    • 1.1V Power Voltage Efficiency

    Rich IIoT-Centric Connectivity



    The BCO-1000-ADLN features a comprehensive variety of I/O connection types while maintaining an ultra-compact form factor. The I/O on-board provides seamless integration, compatibility, and performance with IoT devices and sensors.

    BCO-1000-ADLN

    BCO-1000-ADLN-B

    High-Speed, High-Capacity Data Aggregation



    Enable real-time data aggregation with low latency data processing and storage. The BCO-1000-ADLN is designed to support both a high-speed SSD through the on-board M.2 slot and high-capacity SATA drives to ensure reliable data storage at the rugged edge.

    • M.2 B-Key (2242/2280/3042)
    • 1x 2.5” SATA Drive Bay (7mm or 9mm)

    On-Board Wireless Connectivity



    The BCO-1000-ADLN features compatible connectivity at the rugged edge with support for low-latency wireless connectivity for IoT data telemetry.

    • Wi-Fi 6
    • Bluetooth 5
    • 4G/LTE (BCO-1000-ADLN-B)

    Industrial Grade Design



    Rugged reliability and durability are critical for 24/7 operations in harsh industrial environments and conditions. The BCO-1000-ADLN is purpose-built with industrial-grade components and a fanless design to withstand tough deployment challenges.

    • Fanless, Semi-Rugged Design
    • Wide Operating Temperature: 0°C–50°C
    • MIL-STD-810G Shock & Vibration
    • Wide Power Input: 9-36VDC

    Flexible Mounting Capabilities



    The BCO-1000-ADLN supports two standardized industrial mounting configurations: Wall Mount and an optional DIN-Rail mount. This provides enhanced flexibility in many applications where space may be extremely limited.

    Wall Mount

    DIN-Rail Mount

    Root-Level Hardware Security With TPM 2.0



    TPM 2.0 is an advanced hardware-based crypto-processor that increases security against malware and cyberattacks. The BCO-1000-ADLN is kitted with TPM 2.0 to safeguard sensitive mission-critical data and offer tamper-resistant features.
