    CT-NR101 (NEW)

    1.8" SBC Industrial Motherboard with AMD Ryzen™ Embedded R1000 Series Processor
    FEATURES

    • Femto-ITX form factor 1.8" SBC for space-limited applications

    • AMD Ryzen™ Embedded R1000 Series

    • Single Channel DDR4 Memory Down 4GB upto 8GB

    • HDMI 1.4 resolution supports up to 4096x2160 @ 24Hz

    • Rear I/O: 1x Intel GbE, 1x USB 3.1 Gen 1, 2x Micro HDMI

    • Expansion I/O: 1x Mini PCIe, 1x SMBus

    Datasheet Add to Cart
    • Overview


      AMD Ryzen™ Embedded Series

      Industrial Single Board Computers

      C&T’s industrial SBCs with AMD Ryzen™ Embedded SoCs power embedded and IoT applications with a new class of performance in a integrated single-board solution. AMD industrial motherboards reach new levels of versatility for advanced data processing and wireless telemetry for new levels of machine intelligence. Integrate AMD industrial single board computers for industrial-grade embedded deployments at the rugged edge!

      1.8" SBC With R1606G

      The CT-NR101 1.8" Embedded SBC is an extremely compact single board computer with an AMD Ryzen™ Embedded R1606G SoC processor that boosts performance to a new level. This credit card sized SBC comes in an 84 mm x 55 mm form factor, which is great for highly space-constrained embedded applications.

      • AMD Ryzen™ Embedded R1000 Series
      • DDR4-2400 Single-Channel Memory (Up to 8GB)
      • Dual Independent 4K Displays: 2x Micro HDMI
      • Internal eMMC Storage up to 64GB
      • Expansion: 1x mCPIe, 1x SMBus
      • 1x USB 3.2 (5GB) Type-C (5V/3A), 1x Intel GbE LAN

      Expandable MPCIe Slot

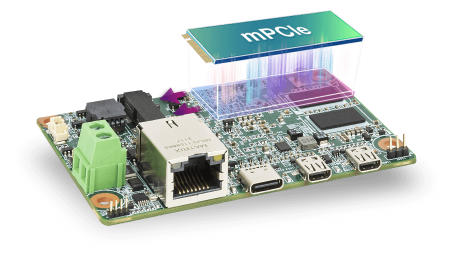

      The 1.8" CT-NR101 has a dedicated mPCIe slot for additional wireless card, I/O card, or performance accelerator expansion. The scalable mPCIe slot provides a further performance enhancement for this ultra-small and lightweight SBC.

      USB Type-C Port

      The USB Type-C port can support 5GB/s transfer speed and power (5V/3A) to an external device. With the mass adoption of USB Type-C, the CT-NR101 is future and deployment ready for various embedded applications at the edge.

    • Specification
      System
      Processor Support AMD Ryzen™ Embedded R1000 Series
      AMD Ryzen™ Embedded R1606G with Radeon™ Vega 3 Graphics, 4M Cache, 2 Cores, 4 Threads, Up to 3.5 GHz
      System Chipset SoC
      LAN Chipset GbE1: Intel i210 (Support Wake-on-LAN and PXE)
      System Memory DDR4-2400 Single-Channel Memory 4GB (Up to 8GB, Optional)
      Graphics AMD RadeonTM Vega 3 (R1606G)
      BIOS AMI SPI 64 Mbit
      TPM fTPM 2.0

      Display
      HDMI 2x Micro HDMI 1.4, resolution up to 4096x2160, 24Hz
      Multiple Display 2x Independent display (1x playback)

      Storage
      SSD/HDD eMMC up to 64GB

      Expansion
      Mini PCIe 1x Full-size Mini PCIe (PCIe x1, USB 2.0)

      I/O
      DIO 2x 5-pin header (4 In/4 Out)
      LAN 1x RJ45
      USB 1x USB 3.2 Gen 1 Type C (5V/3A)
      1x USB 2.0 (4-pin header, internal)

      Internal I/O
      Others 1x RTC battery cable

      Operating System
      Windows Windows 10
      Linux Linux Kernel 5.x (Fedora 30 or above / Ubuntu 19.04 or above)

      Power
      Power Management ACPI
      Power Mode DC 12V
      Power Connector 2-pin Terminal Block Pitch=5.0mm

      Environment
      Form Factor 1.8" Embedded SBC
      Operating Temperature 0°C ~ 60°C, 90% (non-condensing), operating
      Storage Temperature -40°C ~ 85°C, 90% (non-condensing) , Non-operating
      Relative Humidity 5% ~ 90% relative humidity, non-condensing

      Physical
      Dimensions 84 mm x 55 mm

      • All product specifications and information are subject without notice.
    • Order Information
      Available Models
      CT-NR101-R1606G 1.8" SBC with AMD Ryzen™ Embedded R1606G, 2x Micro HDMI, 1x USB 3.2 Gen 1 Type-C

      Packing List
      1x CT-NR10x Main Board
      1x Heat Sink and screws
      1x Front Panel Cable w/ 2x switch & 2x LED
      1x Screw for Mini PCIe
    • Download
      Datasheet
      CT-NR101 Datasheet
      Manual
      CT-NR101 User's Manual
      User's Manual for 1.8“ SBC Industrial Motherboard with AMD Ryzen™ Embedded R1000 Series Processor
      Driver
      [CT-NR101] 01.Chipset
      [CT-NR101] 02.Graphic
      [CT-NR101] 03.LAN
    Find Product
    Product Finder
