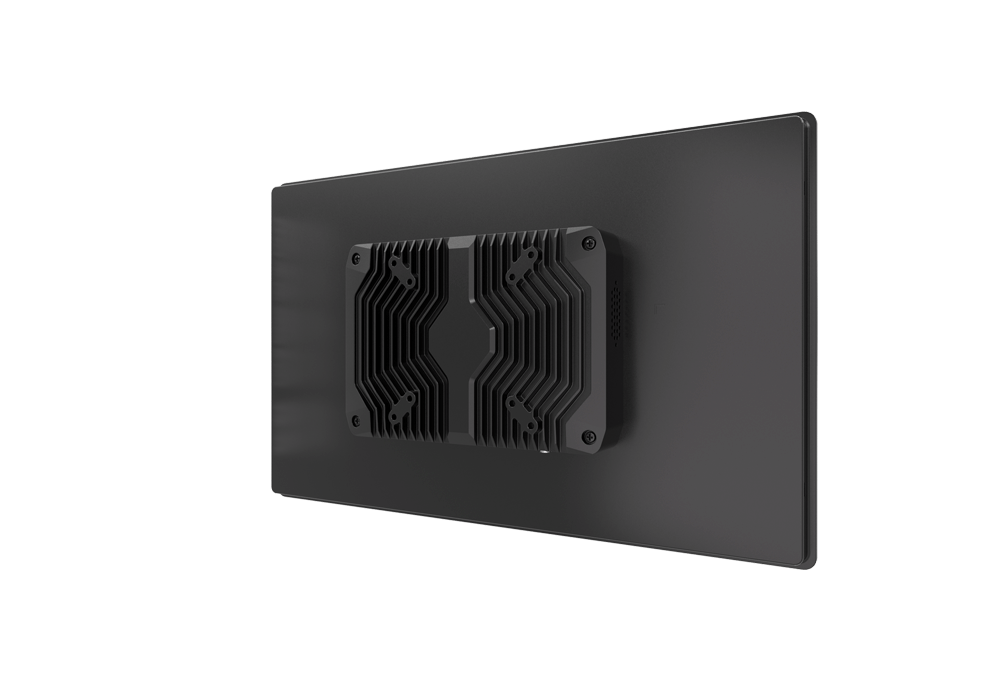

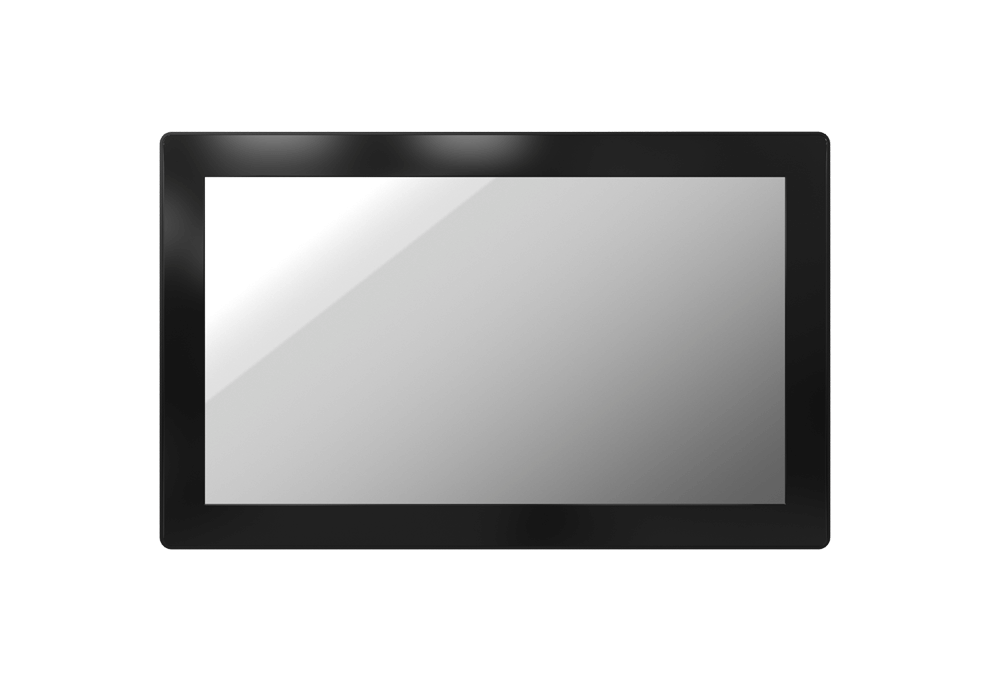

AIO-W215-MX (NEW)

The AIO-200-MX Series offers a range of rugged touchscreen monitors engineered for industrial automation, factory HMI, and control room operations. Available in 10.1”, 15.6”, and 21.5” sizes, these fanless, cableless, and glove-friendly displays deliver exceptional durability and seamless performance—even in the most demanding conditions.

Display
IP Rating	Front IP65
LCD Size	15.6" (16:9)
Max. Resolution	1920 x 1080 (Full HD)
Brightness (cd/m2)	450 nits
Contrast Ratio	1000:1
LCD Color	16.7M
Pixel Pitch (mm)	0.17925(H) x 0.17925(V)
Viewing Angle (H-V)	89/89/89/89 (Typ.) (CR>=10)
Backlight MTBF	50,000 Hours (LED Backlight)



Touch
Touch Type	Projected Capacitive Touch
Surface Hardness	7H / IK07
Multi-touch	10 point (Support Glove Mode)
Anti-noise	CS 10V rms
Interface	USB Type B

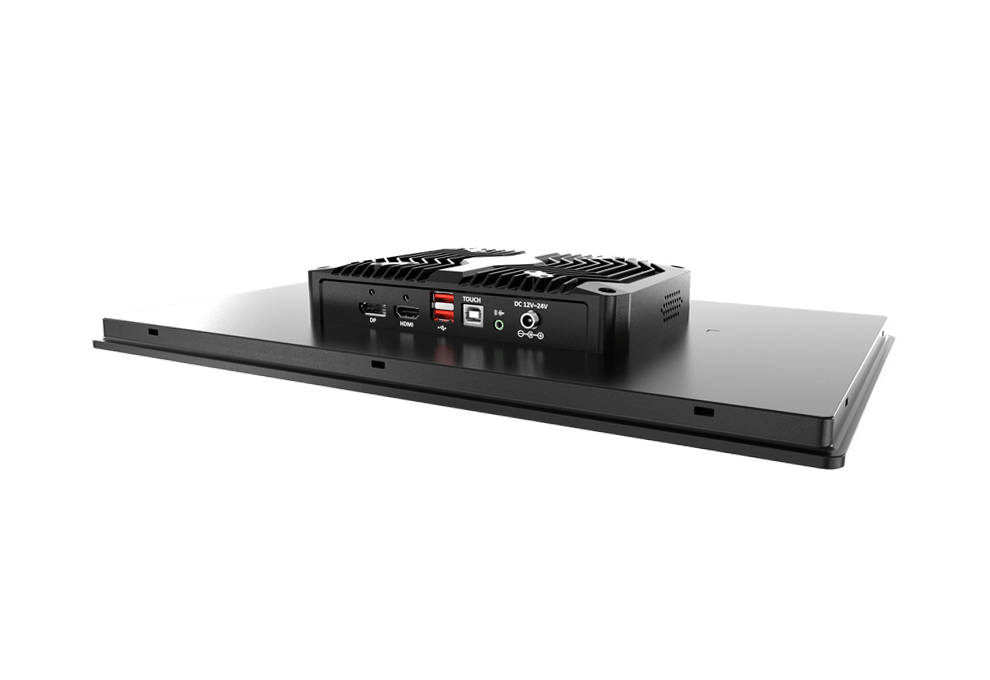

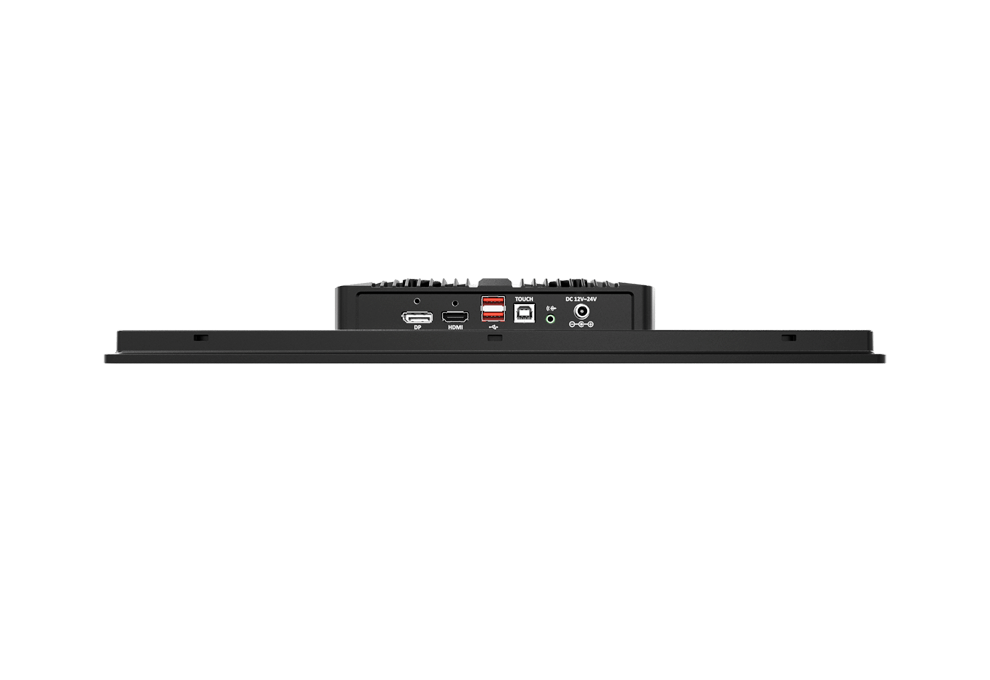

I/O
DisplayPort	1x Display Port 1.1
HDMI	1x HDMI 1.4a
USB	2x USB 2.0 Type A 1x USB Type B for Touch
Speaker	Internal Speaker 2W+2W

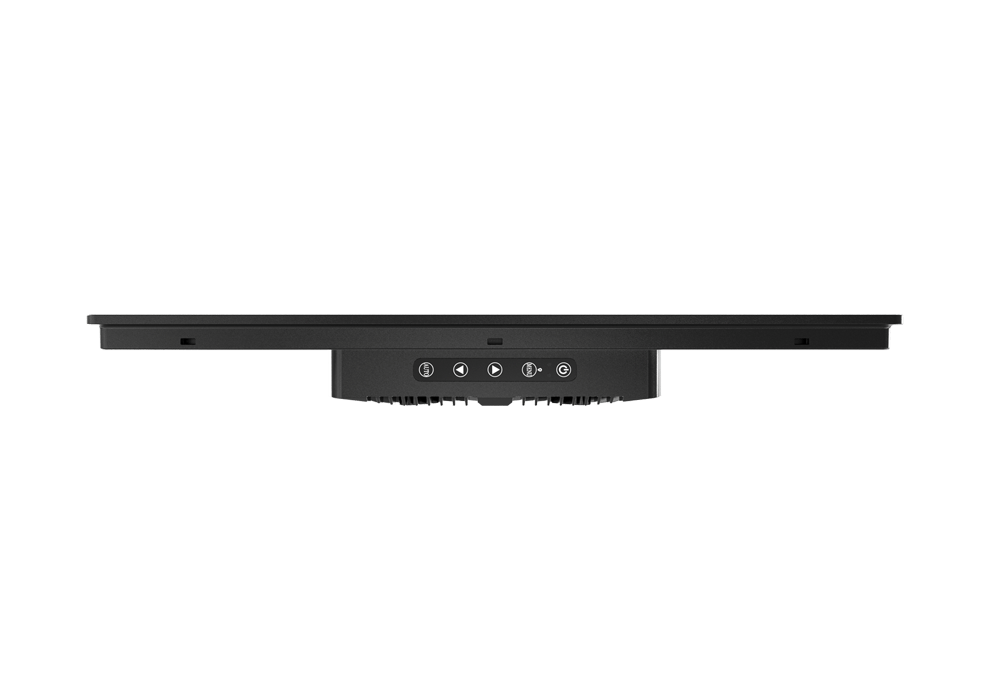

OSD	On/Off, Menu, Adjust - and +, Exit
Audio	1x line-out



Power
Power Adapter	60W with locking (12V 5A)
Power Supply Voltage	DC 12V~24V
Power Connector	DC Jack 5.5mm/2.5mm (OD/ID)



Environment
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Relative Humidity	10% to 80% (non-condensing)
Certification	UL 62368 Ed. 3, CE, FCC Class A, CB, ICES-003, UKCA, RCM, VCCI
Vibration	3 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock	20G half-sin 11ms



Physical
Dimensions	400 (W) x 249 (H) x 50 (D) mm
Weights	2.3 kg
Mounting	VESA Mount (75mm x 75mm/100mm x 100mm) Panel Mount (optional)



• All product specifications and information are subject without notice.

Available Models

Model No.	Description
AIO-W215-MX	15.6" Full HD Capacitive Industrial Touchscreen Monitor, 1x HDMI, 1x Display Port


Optional Accessories

Model No.	Description
1-E09A06012	Adapter Output 12V 5A 60W / Input 100-240V
1-TDPP00006	3 ft. DP-DP cable
1-THDM00008	3 ft. HDMI-HDMI cable
1-TUSB00084	3 ft. USB 2.0 Type A - Type B touch cable
1-TPWR00118	3P Terminal Block(Female) To DC Plug 5.5x2.5 With Lock_100 mm_For AIO Series
1-ND800000100	3P male dinkle connector
3-AI156040S10	AIO-W215 Panel Mount Bracket Kit



Packing List
1x AIO-W215-MX Series Industrial Touchscreen Monitor
1x Adapter 60W 12V 5A
1x USB Cable
1x HDMI Cable
