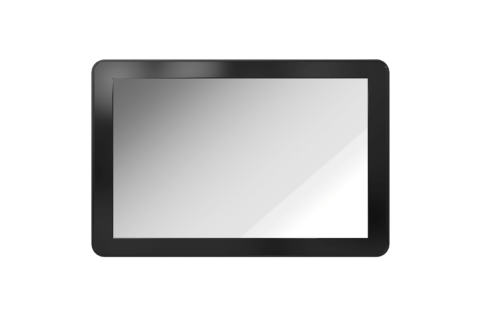

AIO Series All In One IP65 Industrial Touchscreen Computer
AIO-200-ROK Series

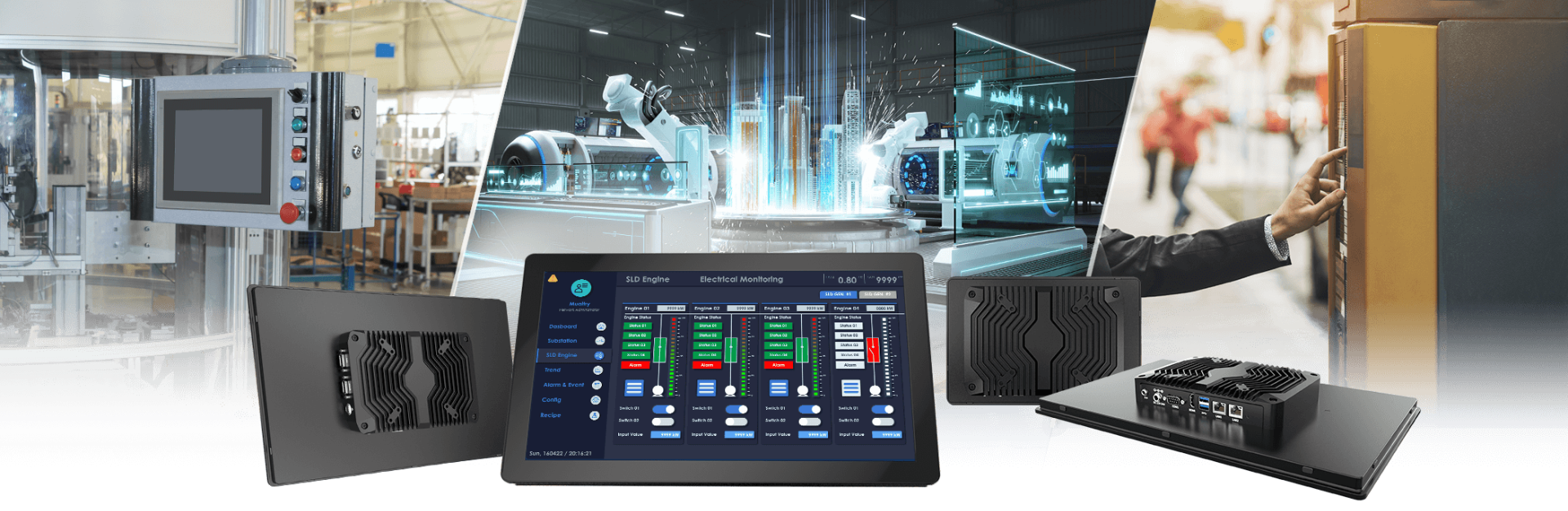

The AIO Series is a reliable all in one panel PC solution that simplifies HMI solutions with high efficient computing capabilities and advanced I/O connectivity. Designed for simple industrial and commercial applications with its sleek all in one panel design and comprehensive functionality.
- Rockchip RK3568J Quad-Core Processor
- Android 13 & Debian 11 OS Support
- 10.1” & 15.6” Touch Displays with IP65, 7H, IK07Protection
- Dual LAN, USB 3.0, HDMI, COM, CAN Bus, Audio Out
- Fanless Design with Wide Temperature & MIL-STD810G Compliance

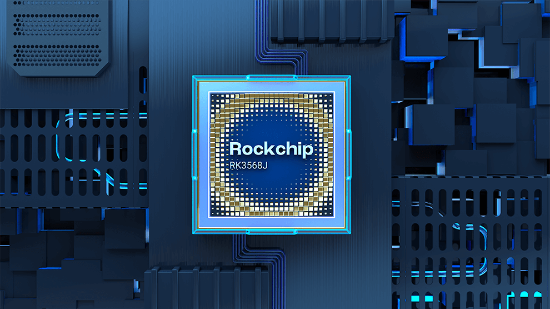

High-Efficiency ARM Computing
- Rockchip RK3568J ARM Processor
- Quad-Core Cortex-A55, up to 2.0GHz, integrated 1 TOPS NPU
- 4GB LPDDR4 Onboard Memory
- Fanless, Low-Power Design
Industrial Grade Durability
- IP65 Front Panel
- 7H Glass Hardness & IK07 Impact Resistance
- MIL-STD-810G Shock & Vibration Tested
- Wide Operating Temp: -20°C to 60°C

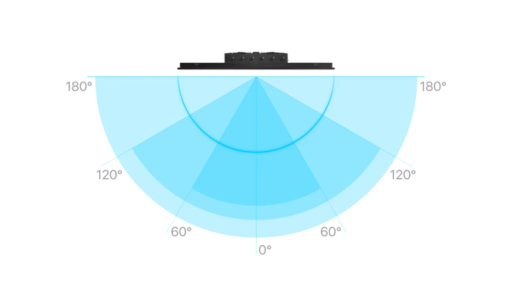

Enhanced Optical Clarity
The AIO Series delivers clear, high-visibility displays for industrial settings. With 500-nit brightness, wide viewing angles, and a high contrast ratio, operators can maintain consistent readability from various positions in demanding environments.

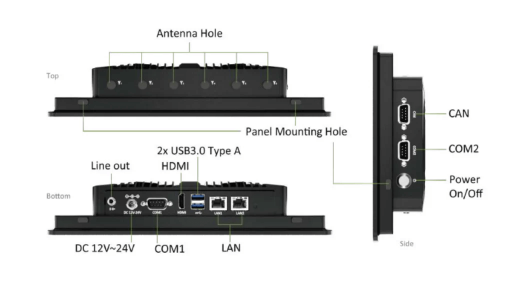

Flexible I/O Connectivity
- 2x GbE LAN, 2x USB 3.0, 2x COM Ports
- 1x HDMI (up to 4K), 1x CAN Bus, Audio Line-Out
- Support for up to 6 External Antennas

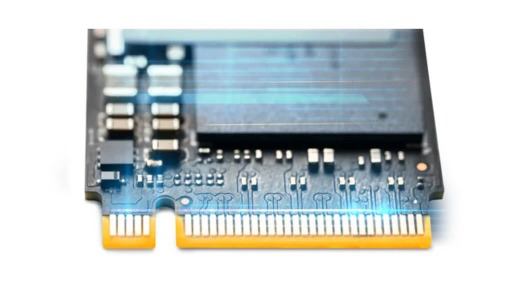

Modular Wireless Expansion
- 1x M.2 E Key: Wi-Fi 6 / Bluetooth 5.2
- 1x M.2 B Key: 4G LTE with SIM Slot Support
Dual OS Support for Versatile Applications
- Android 13: Touch-Optimized Interface for Rapid Deployment
- Debian 11: Open-Source Linux Platform for Custom Development
