LLM-1U-RPL Series
1U Edge AI Server for On-Prem LLM Workloads
Run Generative AI locally with the LLM-1U-RPL Series — a 1U edge AI server designed for real-time large language model (LLM) inference. Powered by advanced GPUs, it supports models up to 40 billion parameters for low-latency, secure, and on-premise AI processing without cloud dependency. Deploy in industrial sites, field locations, or enterprise data centers to bring AI closer to your data.
- Short-Depth 1U Form Factor
- 13th Gen Intel® Core™ Processor (up to 65W TDP)
- Supports NVIDIA® RTX™ 5000 Ada GPU for AI acceleration
- Comprehensive I/O for edge connectivity and expansion
- Cybersecurity-Ready with hardware-level protection
- World-Class Certifications: UL, CE, FCC
Designed for the On-Prem Data Center Edge
The LLM-1U-RPL is strategically designed for deployment at the on-prem edge, serving as the final compute layer before sensor data is sent to the cloud. Positioned at this critical junction, LLM-1U brings local AI inferencing, data sovereignty, privacy, and reliability advantages.

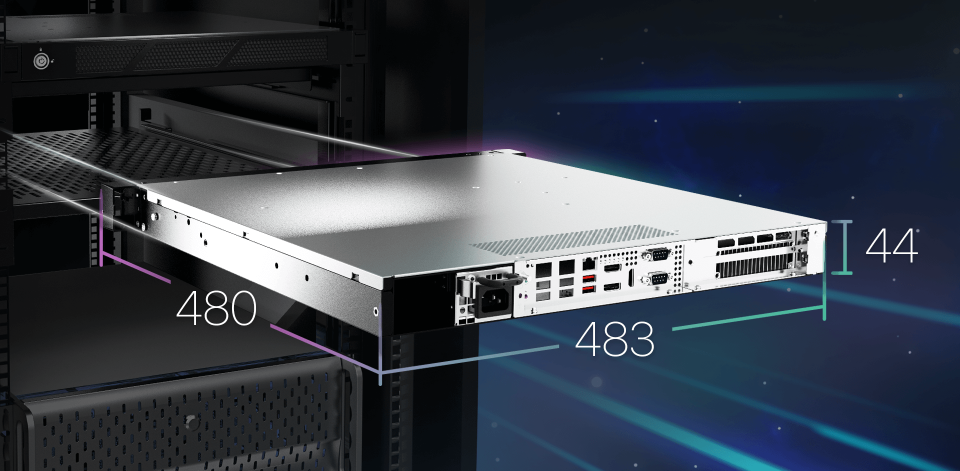

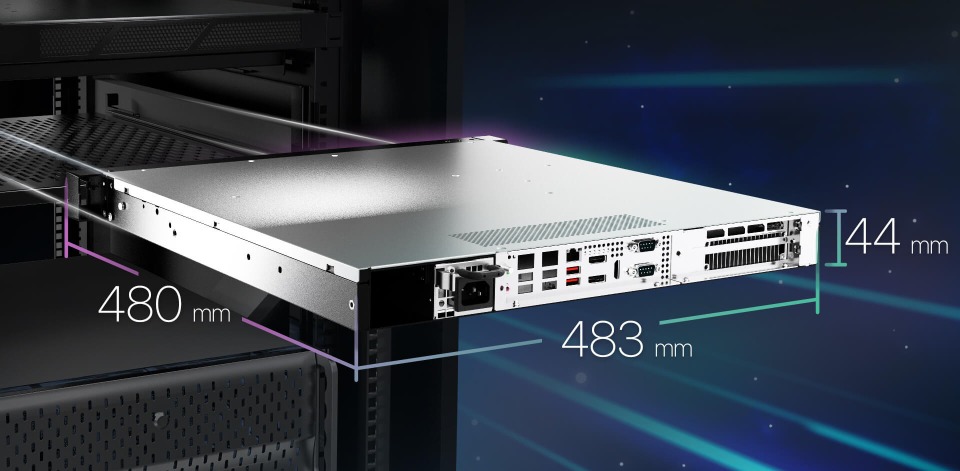

Compact, Server Rack-Ready Design
Engineered with a short-depth 1U form factor, the LLM-1U Series fits seamlessly into space-constrained deployments such as micro data centers, control rooms, and mobile enclosures.
Real-Time Performance at the Edge
The LLM-1U-RPL leverages a performance hybrid architecture from Intel to streamline intensive industrial workloads while minimizing latency and maximizing efficiency.
- 13th Gen Intel® Core™ EProcessors
- Up to24 Cores & 32 Threads
- Performance Hybrid Architecture with up to8 P-Cores & 16 E-Cores
- Dual-channel DDR4Up to 64GB

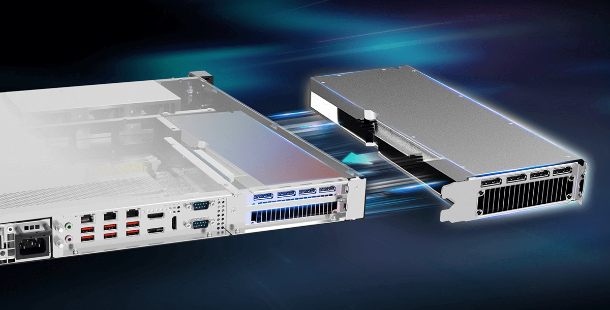

GPU Support for Gen AI Acceleration
The LLM-1U-RPL Series supports workstation-class GPUs that enable high-performance inferencing for on-prem LLM and genAI while ensuring efficiency in thermal management and form factor.
- 1000+ TFLOPS NVIDIA RTX™ 5000 Ada
- Up to 250W
- Workstation-Class GPUs

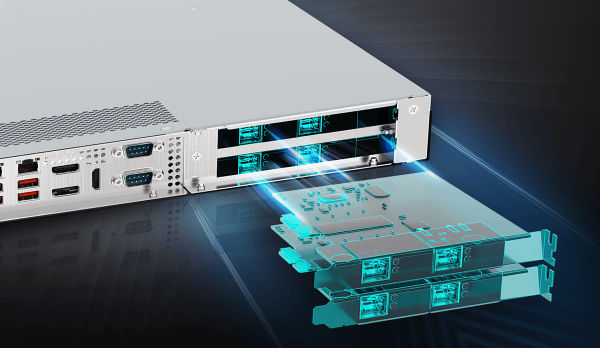

High-Speed PCIe 4.0 Expansion for AI Workloads
In addition to GPU support, PCIe 4.0 expansion provides the flexibility needed for high-specification deployments utilizing high-throughput networking and other industrial add-on expansion cards.
- 1x PCIe 4.0 x16
for full-bandwidth accelerators - 2x PCIe 4.0 x8
for multiple add-on expansion cards

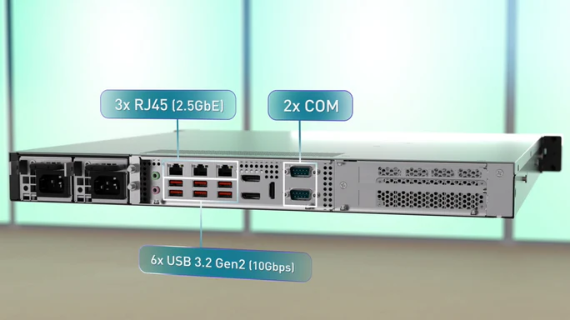

Comprehensive IIoT Connectivity
Consolidating diverse and high-volume sensor data, the LLM-1U Series provides essential connectivity for seamless integration with IIoT cameras, sensors, and devices.
- 6x USB 3.2 Gen2 (10Gbps)
- 3x RJ45 (2.5GbE)
- 2x COM

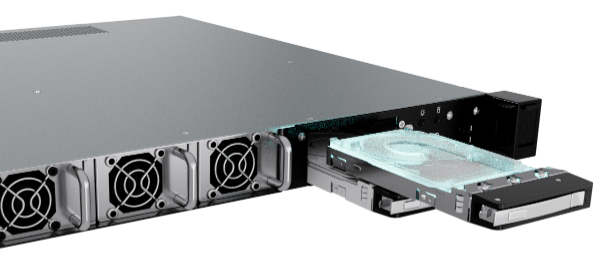

Scalable Storage & High-Speed NVMe
For performance-critical workloads, the LLM-1U-RPL supports high-speed NVMe alongside swappable SATA bays for easy maintenance and data access.
- 1x M.2 M-Key slot for NVMe SSD
- 2x hot-swappable 2.5" SATA drive bays

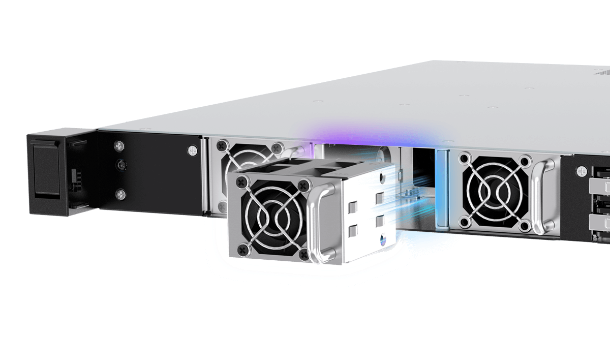

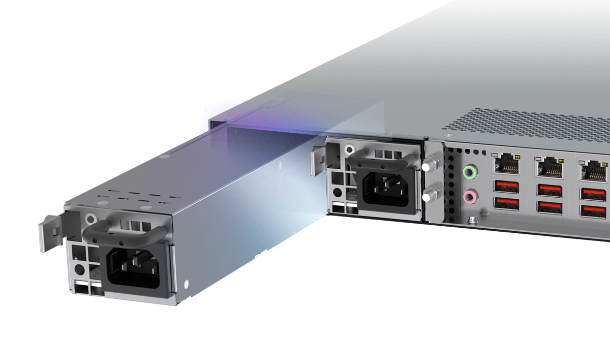

24/7 Uptime with Redundant Power and Cooling
The LLM-1U Series features redundant power supplies and smart cooling fans to ensure uninterrupted operation and simplified maintenance in critical edge AI deployments.
Hot-swappable 600W PSU (1+1)
Hot-swappable 600W PSU (1+1)

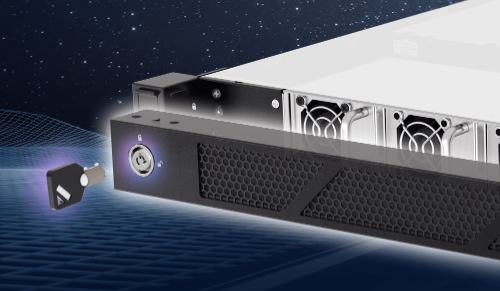

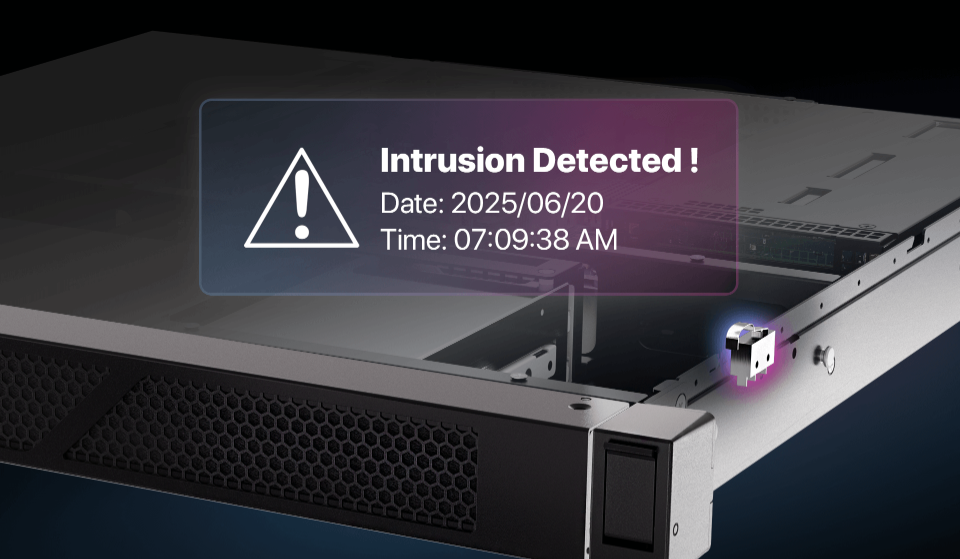

Hardware-Level Cybersecurity for Edge AI
LLM-1U Series features multiple hardware-level protection for physical security, anti-tampering, and data integrity especially in edge deployments.
World-Class Safety Certifications
Undergone rigorous testing and validation to achieve UL safety standards and IEC 62443-4-1 cybersecurity certifications. The LLM-1U Series is trusted for deployment peace of mind and confidence in mission-critical environments.
- IEC 62443-4-1
- UL
- CE, FCC
