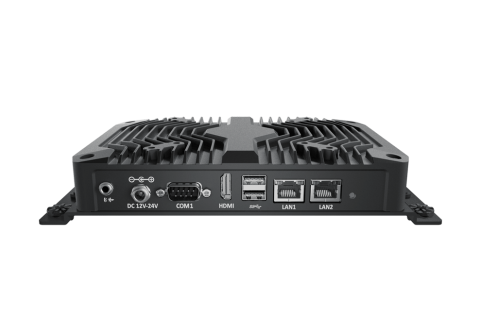

BCO-500-ROK Series
Arm-Based Semi-Rugged Fanless Mini Industrial Computer
The BCO-500-RK3568J Series is an Arm®-based, fanless mini industrial computer purpose-built for edge computingin space-constrained and semi-rugged environments. Powered by the Rockchip RK3568J processor, this compactsystem balances power efficiency with versatile I/O, wireless expansion, and flexible OS support—including Android13 and Debian 11.
- Rockchip RK3568J Quad-core Arm® Processor
- Ultra-Compact Form Factor
- IIoT-Centric Connectivity
- Robust Cellular & Wireless Connectivity

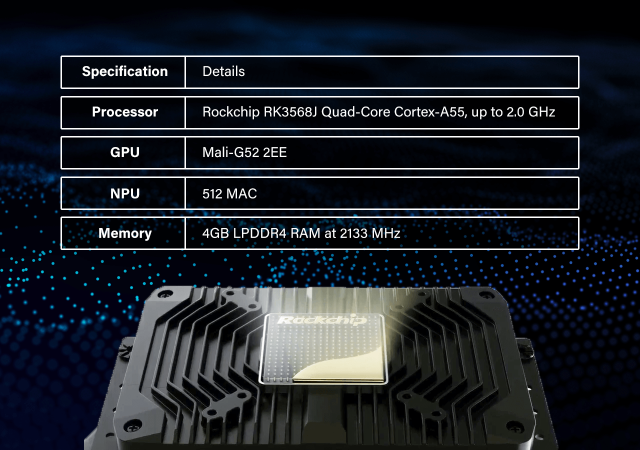

Powered by Rockchip RK3568J Processor
Built on a quad-core Arm Cortex-A55 architecture and 22nm process, the Rockchip RK3568J System-on-Chip (SoC) delivers low-power, efficient performance for fanless, space-constrained environments.

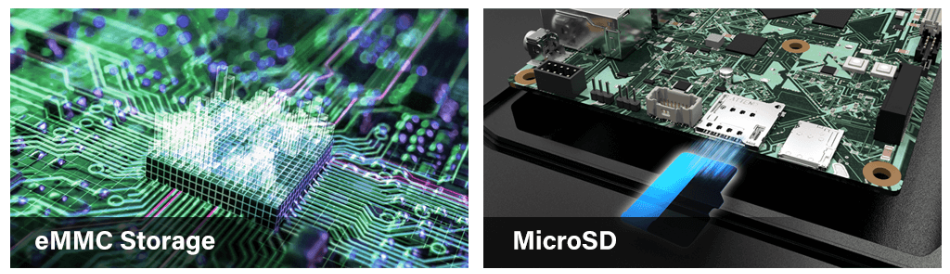

Flexible Storage Options
The BCO-500-ROK Series offers onboard storage designed for reliability and ease of integration in industrial environments.
- 64GB eMMC Storage
- 1x MicroSD Slot
Rich IIoT Centric Connectivity
The BCO-500-ROK Series features comprehensive I/O connectivity on-board within its form factor. The I/O provides seamless integration, compatibility, and performance with various IoT devices and sensors.

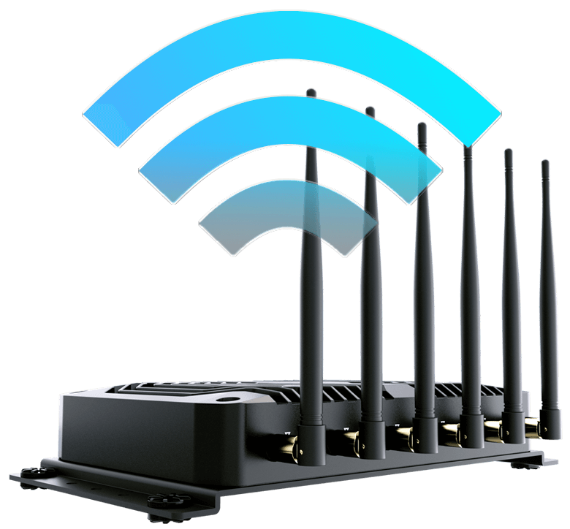

Wireless & Cellular Connectivity with M.2
Enable real-time data transfer and redundant connectivity to maintain uptime. The BCO-500-ROK Series provides M.2 expansion slots integration for wireless and cellular connectivity.
- M.2 B Key (3042) – Supports 4G/LTE
- M.2 E Key (2230) – Supports Wi-Fi and Bluetooth Connectivity

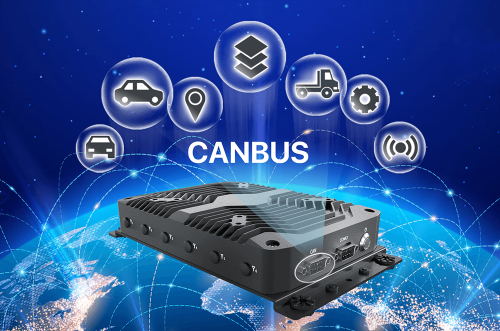

CAN Bus for In-Vehicle Communication
The BCO-500-ROK Series features an integrated CAN Bus port, enabling direct communication with in-vehicle systems and industrial controllers without the need for a central host computer.
Edge-Optimized OS Support
Both Android 13 and Debian 11 are optimized for the Rockchip platform, enabling the BCO-500-ROK Series to deliver a streamlined development process and dependable deployment for diverse edge applications.

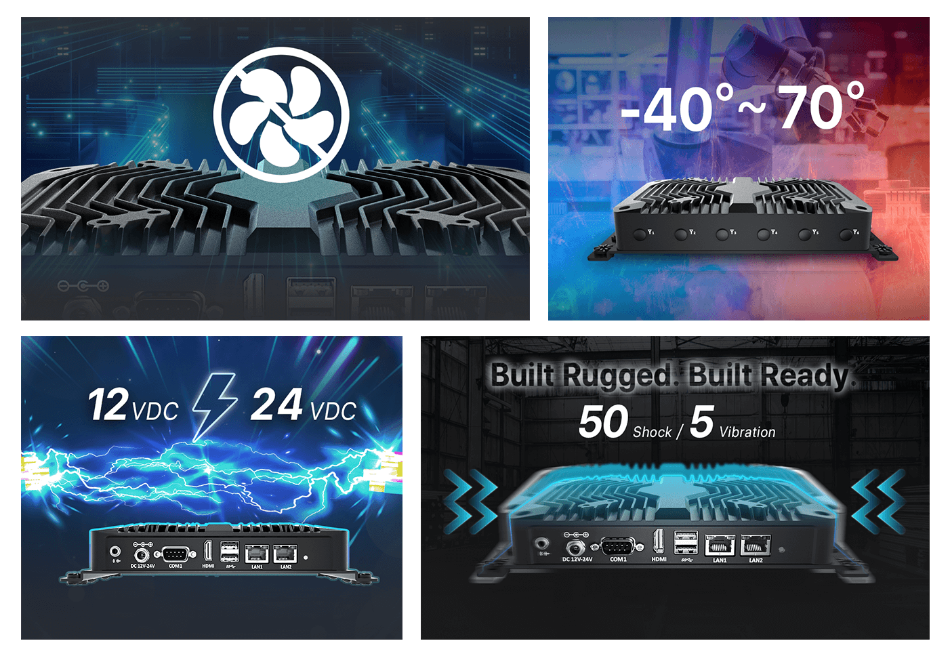

Built Rugged. Built Ready.
Rugged reliability and durability are critical for 24/7 operations in harsh industrial environments and conditions. The BCO-500-ROK Series is purpose-built with industrial-grade components and a fanless design to withstand tough deployment challenges.
- Fanless & Ruggedized Design
- Extreme Operating Temperature: -40°C–70°C
- MIL-STD-810G Shock & Vibration
- Wide Power Input: 12-24VDC
