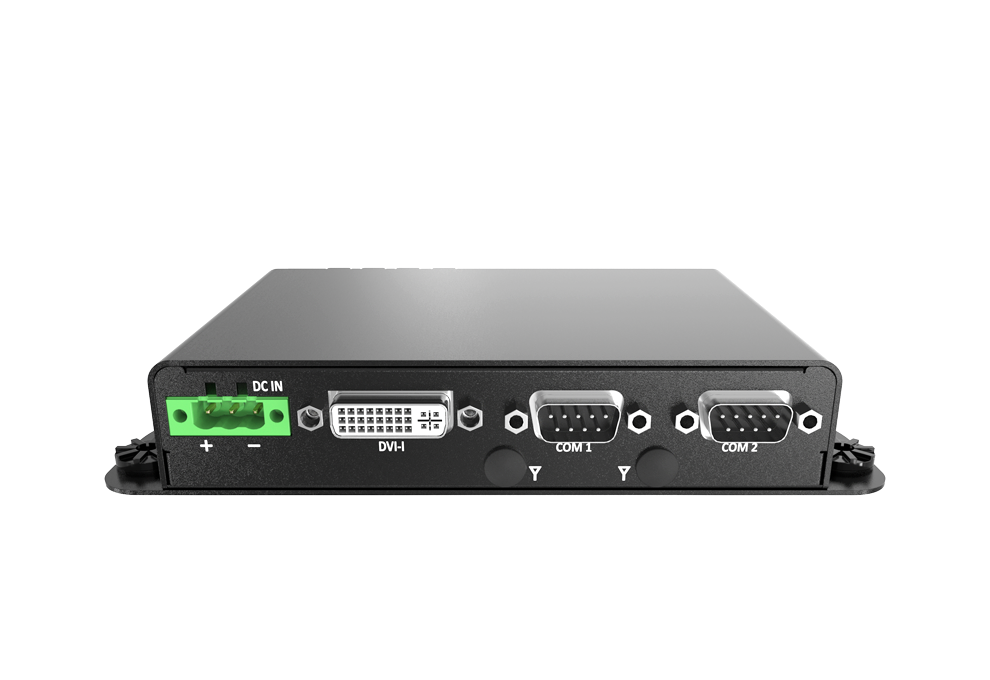

    BCO-1000

    Basic Fanless Embedded System with Intel® Celeron® J1900 Processor, 1x DVI-I, 2x COM
    FEATURES

    • Intel® Celeron® processor J1900, up to 2.0GHz

    • 1x 204-pin DDR3L SODIMM. max up to 8GB

    • Dual independent display supported by 1x DVI-I

    • 2x Intel® GbE supporting Wake-on-LAN and PXE

    • 1x mSATA

    • 2x full-size mini PCIe for communication or expansion modules, 1x SIM socket

    • 2x RS-232/422/485, 1x USB 3.0, 3x USB 2.0

    • 9 to 30VDC wide range power input supporting AT/ATX mode

    • -20°C to 50°C extended operating temperature

    Datasheet Add to Cart
    • Overview
      BCO-1000 series powered by Intel® Celeron® Processor J1900 2.0GHz SoC, which delivers increased performance by up to 150% compared to previous Atom® platforms and low power consumption. The BCO-1000 series is compatible for applications that need a basic and simple but dependable solution. It is an ideal preference as an economical entry-level for diverse applications in computing functionality such as market application in industrial automation, industrial control, Kiosk & retail and digital signage.

      This price-friendly fanless embedded system supports system memory up to 8 GB with one DDR3L-1066/1333 SO-DIMM socket and features an onboard DVI-I display interface to provide further VGA/DVI-D connection to deliver Ultra HD smooth visual display. The BCO-1000 series is equipped with one internal 2.5” SATA HDD bay and one mSATA (shared by 1x Mini PCI Express) to provide sufficient storage. It also comes with one full-size mini PCIe socket with USIM socket (PCIe + USB + SATA) that satisfy customized needs. Its rich I/O connectors (up to 6x COM, 2x LAN, 4x USB) provide versatile I/O expandablity.

      In addition to its efficient CPU computing performance, the BCO-1000 series can be configured through its two antenna for wireless communication. It adopts a wide range power input from 9V to 30V DC, increasing the reliability of the whole system dramatically. Furthermore, the BCO-1000 series is designed to operate dependably in critical conditions with its anti-vibration, anti-shock and wide operating ranging from – 20°C to 50°C temperature range features. The built-in over voltage protection (OVP) makes the BCO-1000 series a safe and secure system for all industrial applications.

      The BCO-1000 series is housed in a sturdy and rugged housing that makes it feel exceptionally solid. By complying with military grade endurance (MIL-STD-810G), the BCO-1000 series is designed to withstand significant shock, constant vibration, and sealed to survive the harshest environments or conditions. The neat and compact design facilitates easy integration, effortless expansion and trouble-free maintenance.

      The BCO-1000 series is very competitive with its affordable price, but without compromising on performance. It is an optimal solution to fit in various type of interface and variety of applications that requires low cost high performance fanless computing. Aside from its rich I/O capabilities, the robust package of BCO-1000 series makes it an ideal choice for a cost-effective, high performance fanless embedded system.

    • Specification
      System
      Processor Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz
      System Chipset SoC integrated
      LAN Chipset GbE1: Intel® I210-AT (Support Wake-on-LAN and PXE)
      Audio Codec Realtek ALC888S
      System Memory 1x 204-Pin DDR3L 1066/1333MHz SODIMM.
      Max. up to 8 GB
      BIOS AMI 64Mbit SPI BIOS
      Watchdog Software Programmable Supports 1~255 sec.
      System Reset
      TPM TPM 2.0 (Optional)

      Display
      VGA Yes (by optional split cable)
      DVI 1x DVI-I
      Multiple Display Dual Display

      Storage
      mSATA 1x mSATA (shared by 1x Mini PCIe)
      SIM Socket 1x External SIM Socket

      Expansion
      Mini PCI Express 1x Full-size Mini PCIe Socket with USIM Socket (PCIe + USB + SATA)
      1x Full-size Mini PCIe Socket (PCIe + USB)

      Operating System
      Windows Windows 10, Windows 8.1, Windows 7, WES7
      Linux Linux kernel 3.X

      I/O
      COM 2x RS-232/422/485
      USB 1x USB 3.0,  3x USB 2.0
      LAN 2x RJ45
      Audio 1x Mic-in,  1x Line-out
      Others 3x WiFi Antenna Holes
      1x Power Switch,  1x AT/ATX Switch

      Power
      Power Mode AT, ATX
      Power Supply Voltage 9~30VDC
      Power Connector 3-pin Terminal Block
      Power Adaptor Optional AC/DC 12V/5A, 60W
      Power Protection OVP (Over Voltage Protection)

      Environment
      Operating Temp. -20°C to 50°C
      Storage Temp. -30°C to 70°C
      Relative Humidity 10% to 95% (non-condensing)
      Vibration With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
      With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
      Shock With SSD: 50G, half sine, 11ms
      Standards / Certification CE, FCC Class A

      Physical
      Construction Fanless Design
      Dimension 142 (W) x 101 (D) x 30 (H) mm
      Weight 0.46 kg
      Mounting Wall Mounting

      • All product specifications and information are subject without notice.
    • Order Information
      Available Models
      BCO-1000-J1900 Basic Fanless Embedded System with Intel® Celeron® J1900 Processor, 1x DVI-I, 2x COM

      Ordering Information
      1-E09A06007 Adapter AC/DC 12V 5A 60W with 3-pin Terminal Block Plug 5.0mm Pitch
      SFICBL022 Power Cord, 3-pin US Type, 180cm
      1-TPCD00002 Power Cord, European Type, 180cm
      1-TPCD00001 Power Cord, 3-pin UK Type, 180cm

      Packing List
      1x BCO-1000 Series Embedded System
      1x Utility DVD Driver
      1x Accessory Kit
      1x DVI to VGA Adapter
