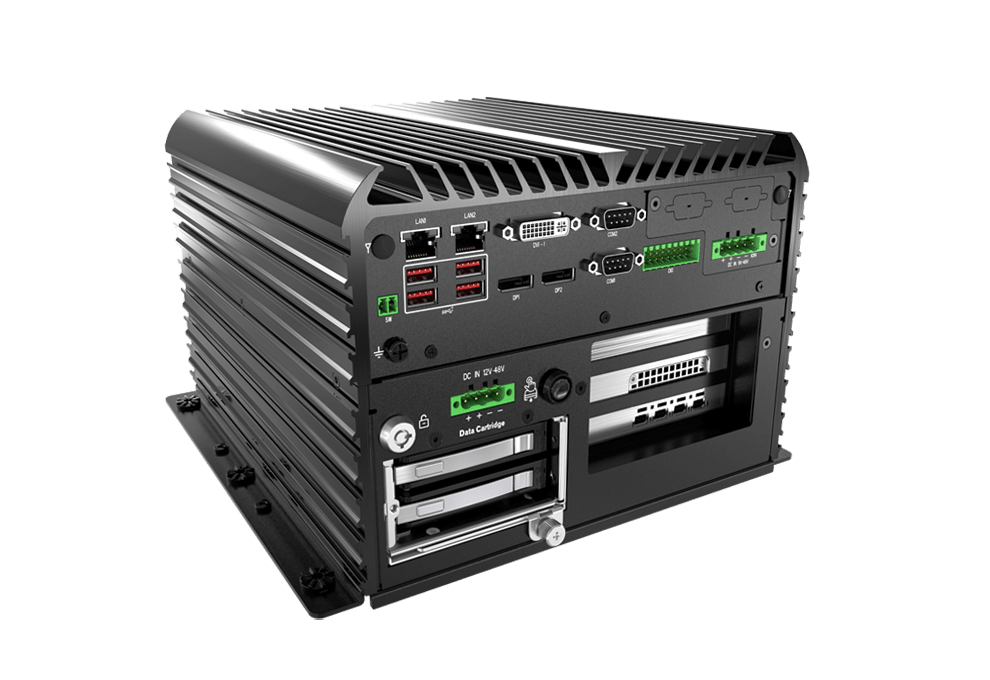

    RCO-6000-RPL-2NA2000 (NEW)

    AI Edge Inference Computer w/ LGA 1700 for Intel 12/13/14th Gen CPU & R680E PCH, 2 Bay U.2 15mm, RTX A2000 integrated
    FEATURES

    • LGA 1700 socket for 12/13/14th Gen. Intel® ADL & RPL Processor (65W/35W TDP)

    • Intel® R680E Chipset

    • NVIDIA RTX A2000 12GB Graphics based on NVIDIA Ampere Architecture-Based CUDA Cores

    • 2x DDR5 4800/5600MHz SODIMM. Max. up to 64GB

    • 7 Display interface supported by 1x DVI-I, 2x DisplayPort, 4x Mini DisplayPort

    • 2x Intel® 2.5 GbE supporting Wake-on-LAN and PXE

    • 1x Full-size Mini PCIe for communication or expansion modules, 2x SIM socket

    • 2x 15mm Hot-swappable NVMe SSD, Support RAID 0, 1

    • 1x 9mm 2.5" SATA SSD (Internal), 1x 7mm 2.5" SATA SSD (Hot-swap)

    • 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)

    • 1x M.2 (B Key, 2242/3042/3052, PCIe x2, Support AI Module/NVMe Storage, PCIe x1 & USB 3.2 Gen1, Support 4G/5G)

    • 6x RS-232/422/485 (4x internal), 8x USB 3.2 Gen 2, 1x USB 3.2 Gen 1 (internal)

    • 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode

    • Wide Operating Temperature -25°C to 45°C (35W/65W CPU)

    • TPM 2.0 Supported

    Datasheet Add to Cart
    • Overview
      RCO-6000-RPL series is an extreme features integration, outstanding system performance, versatile I/O connections, and rugged reliability fanless embedded systems. It offers dramatically enhanced CPU and graphics performance, wide power and feature scalability, and advanced features, modularize expansion I/O, rich connectivity interfaces, wide range (9~48V) DC power input, and high reliability even operating in temperature extremes (-25°C~60°C).

      Featuring with completely cable-less designed, high functional, one-piece housing design, and anti-vibration, RCO-6000-RPL series are ruggedized systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC power input makes RCO-6000-RPL series are safety system for all industrial applications.

    • Specification
      System
      Processor Support 12/13th/14th(Non-vPRO) Gen Intel® ADL & RPL Processor (LGA 1700, 65W/35W TDP)
      •Intel® Core™ i9-14900/i9-13900E/i9-12900E, up to 24 Cores, 36MB Cache, up to 5.8 GHz, 65W
      •Intel® Core™ i9-14900T/i9-13900TE/i9-12900TE, up to 24 Cores, 36MB Cache, up to 5.5 GHz, 35W
      •Intel® Core™ i7-14700, up to 20 Cores, 33MB Cache, up to 5.4 GHz, 65W
      •Intel® Core™ i7-14700T, up to 20 Cores, 33MB Cache, up to 5.2 GHz, 35W
      •Intel® Core™ i7-13700E/i7-12700E, up to 16 Core, 30MB Cache, up to 5.1 GHz, 65W
      •Intel® Core™ i7-13700TE/i7-12700TE, up to 16 Cores, 30MB cache, up to 4.8 GHz, 35W
      •Intel® Core™ i5-14500/i5-13500E/i5-12500E, up to 14 Cores, 24MB Cache, up to 5.0 GHz, 65 W
      •Intel® Core™ i5-14500T/i5-13500TE/i5-12500TE, up to 14 Core, 24MB Cache, up to 4.8 GHz, 35W
      •Intel® Core™ i3-13100E/i3-12100E, up to 8 Cores, 12MB cache, up to 4.4 GHz, 60W
      •Intel® Core™ i3-14100T/i3-13100TE/i3-12100TE, up to 4 Cores, 12MB Cache, up to 4.4 GHz, 35W
      •Intel® Core™ 300T, up to 2 Cores, 6MB Cache, up to 3.4 GHz, 35W
      •Intel® Pentium® G7400E,2 Cores, 6MB Cache, 3.6 GHz, 46W
      •Intel® Pentium® G7400TE, 2 Cores, 6MB Cache, 3.0 GHz, 35W
      •Intel® Celeron® G6900E, 2 Cores, 4MB Cache, 3.0 GHz, 46W
      •Intel® Celeron® G6900TE, 2 Cores, 4MB Cache, 2.4 GHz, 35W
      System Chipset Intel® R680E Express Chipset
      LAN Chipset 2.5 GbE1: Intel I226, 2.5 GbE2: Intel I226
      Support Wake-on-LAN and PXE, Support TSN
      Audio Codec Realtek ALC888S
      System Memory 2x 262-Pin DDR5 4800/5600MHz SODIMM.
      Max. up to 64GB (ECC and Non-ECC)
      Graphics Intel® UHD Graphics 770/710 or NVIDIA RTX A2000 12GB integrated
      BIOS AMI 256Mbit SPI BIOS
      Watchdog Software Programmable Supports 1~255 sec. System Reset
      TPM TPM 2.0

      Display
      Display Port 2x DisplayPort, Support resolution 5120 x 3200, Up to 7680 x 4320
      DVI 1x DVI-I, support resolution 1920 x 1200
      Multiple Display 7 Display interfaces
      Mini DisplayPort 4x Mini DisplayPort, Support resolution 5120 x 2880, Up to 7680 x 4320

      Storage
      M.2 1x M.2 B Key, 2242/3042/3052
      (PCIe x2, Support AI Module/NVMe Storage)
      (PCIe x1 & USB 3.2 Gen1, Support 4G/5G)
      mSATA 1x mSATA (Shared by 1x Mini PCI Express)
      NVMe 1x Removable Cannister Brick with 2.5" 2 Bay U.2 NVMe SSD
      (Support H=15mm)
      SIM Socket 2x External SIM socket (Mini PCIE/M.2 B Key attached)
      SSD/HDD 1x 9mm 2.5" SATA HDD Bay (Internal)
      1x 7mm 2.5" SATA HDD Bay (Hot-swappable)
      2x 15mm 2.5" NVMe SSD Bay (Hot-swappable)
      Support RAID 0, 1

      Expansion
      M.2 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
      Mini PCIe 1x Full-size Mini PCIe (1x shared by 1x mSATA)
      Expansion Modules
      2x EDGEBoost I/O Brackets:
      • 4-port GbE module with Intel® I350 Chipset, RJ-45/M12 connector (PoE optional)
      • 2-Port RJ45 10GbE with Intel X710 Chipset
      • 4-Port USB 3.0 (share PCIe Gen2 x1 bandwidth)
      • 1x M.2 B-Key, 2242 for AI/NVMe, 1x M.2 B-Key, 3042/3052 for 5G/AI/NVMe
      • 1x M.2 M-Key, PCIe x4 Lane, 2242/2260 for AI Module/NVMe
      • 1x M.2 for 5G (B Key, PCIe x1, USB 3.0, 3042/3052), 2x SIM socket, 1x SIM switch

      Operating System
      Windows Windows 10/11
      Linux Linux kernel

      I/O
      Audio 1x Mic-in, 1x Line-out
      CAN 2x CAN 2.0 A/B 2-pin Internal header
      COM 2x RS-232/422/485 ; 4x RS-232/422/485 (Internal)
      DIO 8 in / 8 out (Isolated)
      LAN 2x RJ45
      EDGEBoost I/O Bracket 2x EDGEBoost I/O Bracket (By mini PCIe interface)
      USB 8x USB 3.2 Gen 2 (10 Gbps)
      1x USB 3.2 Gen 1 (5 Gbps, 1x Internal),
      2x USB 2.0 (Internal)
      Others 5x WiFi Antenna Holes
      1x Power Switch, 1x AT/ATX Switch,
      1x Remote Power On/Off
      1x PC/Car Mode Switch, 1x Delay Time Switch
      1x Removable CMOS Battery

      Power
      Power Adapter Optional AC/DC 24V/9.2A, 220W
      Optional AC/DC 24V/11.67A, 280W
      Optional AC/DC 24V/15A, 360W (i7/i9 CPU/GPU/Card Expansion)
      Power Mode AT, ATX
      Power Ignition Sensing Power Ignition Management
      Power Supply Voltage 9~48VDC
      12~48VDC for NVMe EDGEboost Node
      Power Connector 5-pin Terminal Block
      4-pin Terminal Block for NVMe EDGEBoost Node
      (12V requires 4-pin terminal block)
      Power Protection OVP (Over Voltage Protection);
      OCP (Over Current Protection)
      Reverse Protection

      Environment
      Operating Temperature -25°C to 45°C (35W/65W CPU)
      (Optional External Fan Kit: Recommended for i9 CPU/65W)
      Storage Temperature -30°C to 85°C
      Relative Humidity 10% to 95% (non-condensing)
      Certification CE, FCC Class A
      Vibration IEC60068-2-64:2008
      With HDD: 1 Grms (5 - 500 Hz, 0.5 hr/axis)
      With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis)
      Designed to comply with MIL-STD-810G Method 514.7
      Procedure I
      Shock IEC60068-2-27:2008
      With SSD: 20G half-sin 11ms
      Designed to comply with MIL-STD-810G Method 516.7
      Procedure I

      Physical
      Construction 240 (W) x 261 (D) x 166.9 (H) mm
      Weights 11 ~ 12 kg
      Construction Extruded Aluminum with Heavy Duty Metal
      Mounting Options Wall Mounting

      • For 12/13/14th CPUs configured to run at 65W, operating temperatures will be limited to 45°C.
      • 65W CPUS may experience thermal throttling depending on extreme application workloads; this is also due to an increase in the physical CPU cores from the Intel silicon (up to 24 cores). Please note, this does not indicate system malfunction or problems in the fanless design. Please consult our embedded engineers for the best configuration to match your application requirements.
      • All product specifications and information are subject without notice.
    • Order Information
      Available Models
      RCO-6000-RPL-2NA2000 AI Edge Inference Computer w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 2x LAN, 2 Bay U.2 15mm, RTX A2000 integrated

      Ordering Information
      1-E09A22102 Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch
      1-E09A22801 Adapter AC/DC 24V/11.67A 280W with 3pin Terminal Block Plug 5.0mm Pitch
      1-E09A36002 Adapter AC/DC 48V/7.5A 360W with 3pin Terminal Block Plug 5.0mm Pitch
      1-TPCD00005 Power Cord, 3-pin US Type, 180cm
      1-TPCD00002 Power Cord, European Type, 180cm
      1-TPCD00001 Power Cord, 3-pin UK Type, 180cm
      3-EXFANK01S10-S0 External Double Fan Module Kit (for Product shipment)
      3-EXFANK01S10-S1 External Double Fan Module Kit (for system assembly)
      1-TFAN00005 FAN Extension Cable

      Packing List
      1x RCO-6000-RPL-2NA2000 Embedded System
      1x Wall Mount Kit
      1x Accessory Kit
      1x DVI to VGA Adapter
