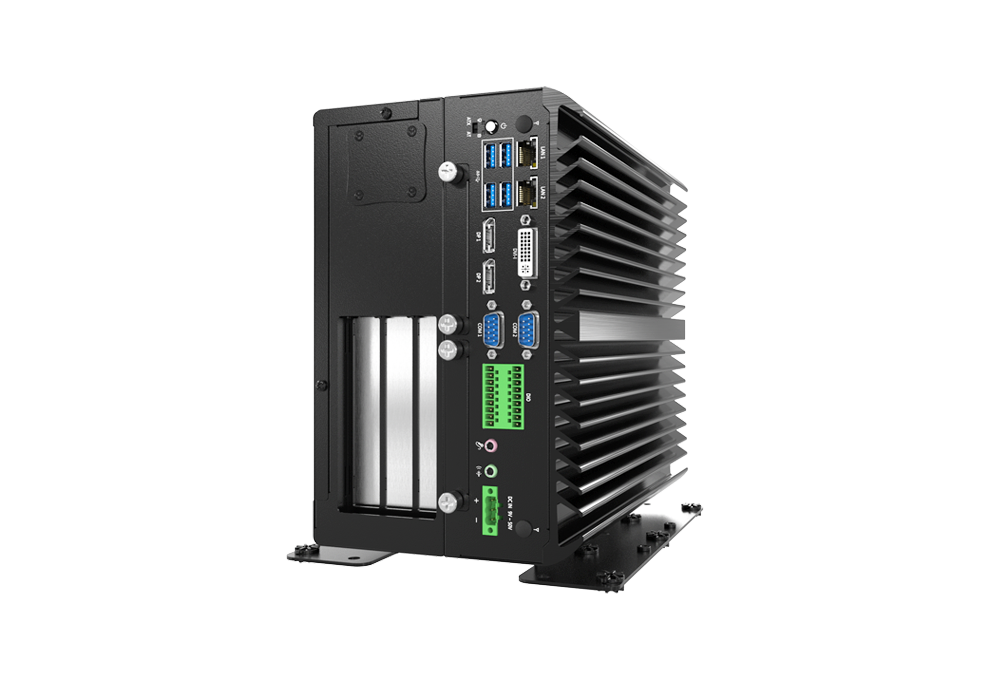

Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 2x PCIe x1, 1x PCIe x16
- LGA 1151 socket for 6th/7th Gen. Intel® Core™ i7/i5/i3 or Pentium® / Celeron® Desktop Processor
- Intel® Q170 chipset
- 2x DDR4 SODIMM. max up to 32GB
- Triple independent display supported by 1x DVI-I and 2x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 2x 2.5” SATA HDD Bay, 2x mSATA (shared by 2x mini PCIe), and 1x CFast supporting RAID 0, 1, 5, 10
- 3x full-size mini PCIe for communication or expansion modules
- 4x RS-232/422/485 (w/ 2x internal), 4x USB 3.0, TPM 2.0
- 2x PCIe x1 and 1x PCIe x16 expansion
- 8x DI + 8x DO with isolation
- 9 to 50VDC wide range power input supporting AT/ATX mode
- -25°C to 70°C extended operating temperature
Home Product Embedded Computer Machine Vision VCO-6000 VCO-6033E
OverviewThe VCO-6000 series adopts 7th Gen. Intel® Core™ i7-7700T (3.8GHz, Quad Core) / i5-7500T (3.3GHz, Quad Core) / i3-7101TE (3.4GHz, Dual Core) or 6th Gen. Intel® Core™ i7-6700TE (3.4GHz, Quad Core) / i5-6500TE (3.3GHz, Quad Core) / i3-6100TE (2.7GHz, Dual Core) or Pentium® G4400TE (2.4GHz, Dual Core)/ Celeron® G3900TE (2.3GHz, Dual Core) Desktop processor (LGA 1151) which promises breakthrough performance and power efficiency over previous micro-architectures for high performance graphics, dramatic high-resolution video playback, outstanding system performance and responsiveness, and stronger security. It is designed with customers in mind to deliver an excellent system performance, higher reliability and robustness in a compact construction.
Delivering rich user experience, the VCO-6000 series implements DVI-I and 2x DisplayPort triple independent display outputs for video and image applications. Moreover, the VCO-6000 series features a fanless design with optional fan module to regulate air flow and sustain optimum internal chassis temperature. It provides isolated DIO, flexible wide voltage range 9V – 50V DC power input and wide operating temperature from -25°C to 70°C so it can really support the add-on cards’ full performances even in harsh condition.
There is an array of expansion interfaces on VCO-6000 series to meet different demands of each customer. The 2 Mini PCIe slots can be used for LTE, 3G, GSM, and WLAN wireless communication. For expansion interface, it supports up to 2 PCI/PCI Express slots which can be used to install a variety of PCI, PCIe x4 or PCIe x16 including different motion control card, frame grabber card, video capture card, I/O cards, and communication cards.
To make things easier such as installation and maintenance, this series solution features single-side access I/O, accessible storage design and standard mounting configurations for DIN-rail mounting and wall mounting. In addition, it’s rugged and cable-free design are focused to increase reliability, extend Mean Time To Repair (MTTR) and decrease maintenance efforts.
With its uncompromising industrial construction, the VCO-6000 series is constructed with extruded aluminum and heavy duty metal which enables it to adapt for continuous operation under adverse condition. In addition, it is engineered to balance the act between higher computational speed and lower power consumption to produce minimal heat which has an optimize effect on its lifespan and functional safety.
The VCO-6000 series offers abundant grade features, all-in-one integrated features, various I/O connection, flexible expansion features, and smart manageability to provide customers highly reliable and manageable embedded solution. Moreover, its fanless, noiseless operation, unique thermal solution, and rugged reliability features makes it an excellent solution for multiple applications like machine vision, motion control, digital surveillance and factory automation.
System Processor Support 6th & 7th Gen Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Desktop Processor (LGA 1151)
- 7th Gen Intel® Core™ i7-7700T, Quad Core, 8MB cache, up to 3.8 GHz
- 7th Gen Intel® Core™ i5-7500T, Quad Core, 6MB cache, up to 3.3 GHz
- 7th Gen Intel® Core™ i3-7101TE, Dual Core, 3MB Cache, 3.4 GHz
- 6th Gen Intel® Core™ i7-6700TE, Quad Core, 8MB Cache, up to 3.4 GHz
- 6th Gen Intel® Core™ i5-6500TE, Quad Core, 6MB Cache, up to 3.3 GHz
- 6th Gen Intel® Core™ i3-6100TE, Dual Core, 4MB Cache, 2.7 GHz
- Intel® Pentium® G4400TE, Dual Core, 3MB Cache, 2.4 GHz
- Intel® Celeron® G3900TE, Dual Core, 2MB Cache, 2.3 GHz
System Chipset Intel® Q170 Express Chipset LAN Chipset GbE1: Intel® I210-AT (Support Wake-on-LAN and PXE)
GbE2: Intel® I219LM (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S System Memory 2x DDR4 1866/2133MHz SODIMM.
Max. up to 32GB
BIOS AMI 128Mbit SPI BIOS Watchdog Software Programmable Supports 1~255 sec.
TPM TPM 2.0 Display DVI 1x DVI-I, support resolution 1920 x 1200 DisplayPort 2x DisplayPort, support resolution 4096 x 2304 Multiple Display Triple Display Storage SSD/HDD 2x Removable 2.5" SATA HDD Bay
Support RAID 0, 1, 5, 10
mSATA 2x mSATA (shared by 2x Mini PCI Express) CFast 1x CFast Expansion Mini PCI Express 3x Full-size Mini PCIe (shared by 2x mSATA) PCI Express 2x PCIe x4 (1-lane), 1x PCIe x16 Model (Option):
3x PCI Model (Option):
1x PCIe x16 and 2x PCI Card Dimension 235 (L) x 112 (H) mm Operating System Windows 6th Gen CPU: Windows 10, Windows 7, WES7
7th Gen CPU: Windows 10
Linux Linux kernel 4.X I/O COM 2x RS-232/422/485
2x RS-232/422/485 (internal)
USB 4x USB 3.0 LAN 2x RJ45 Audio 1x Mic-in, 1x Speaker-out DIO 8 in / 8 out (Isolated) Universal I/O Bracket 1x Universal I/O Bracket (By mini PCIe interface) Others 2x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch
Power Power Mode AT, ATX Power Supply Voltage 9~50VDC Power Connector 3-pin Terminal Block Power Adaptor Optional AC/DC 24V/5A, 120W Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Environment Operating Temp. -25°C to 70°C Storage Temp. -40°C to 85°C Relative Humidity 10% to 95% (non-condensing) Vibration With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 50G, half sine, 11ms Standards / Certification CE, FCC Class A Physical Construction Extruded Aluminum with Heavy Duty Metal Dimension 157 (W) x 256 (D) x 240 (H) mm Weight 5.86 kg Mounting Wall / Book Mounting
DIN-Rail Mounting (Optional)
- All product specifications and information are subject without notice.
Available Models VCO-6033E Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 2x PCIe x1, 1x PCIe x16 VCO-6033P Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 3x PCI VCO-6033C Superior Machine Vision System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, 1x PCIe x16, 2x PCI Ordering Information 1-E09A12002 Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch SFICBL022 Power Cord, 3-pin US Type, 180cm 1-TPCD00002 Power Cord, European Type, 180cm 1-TPCD00001 Power Cord, 3-pin UK Type, 180cm Packing List 1x VCO-6000 Series Embedded System 1x Utility DVD Driver 1x Wall Mount Kit 1x Accessory Kit
