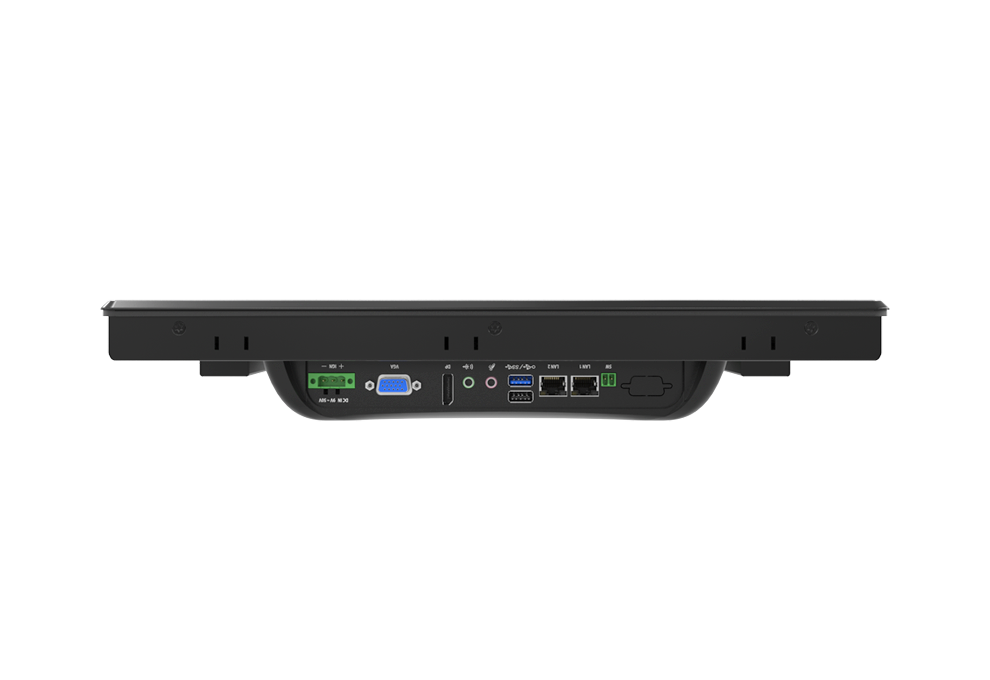

    • VIO-215_PC100_(bottom)
    • VIO-215_PC100_(top)

    VIO-215/PC100

    15" XGA Resistive / Capacitive Touch Thin Frame Panel PC with Intel® Celeron® Processor J1900, 4x COM
    FEATURES

    • 15” TFT XGA 4:3 LCD with resistive 5-wire / projected capacitive touch

    • 15” TFT XGA 4:3 LCD with resistive 5-wire touch

    • Intel® Celeron® processor J1900, 2.0 GHz

    • 1x 204-pin DDR3L SODIMM. max up to 8GB

    • 1x 2.5” SATA HDD bay, 1x mSATA, 1x CFast, 2x SIM socket

    • 2x full-size mini PCIe for communication or expansion modules

    • 2x LAN, 1x VGA, 1x DisplayPort

    • 6x RS-232/422/485 (w/ 2x internal), 1x USB 3.0, 3x USB 2.0, Audio

    • 8x DI + 8x DO with isolation

    • 9 to 50VDC wide range power input

    • -10°C to 60°C extended operating temperature

    • Designed with aluminum die-casting front frame

    • IP65 compliant front panel

    • Two 10W internal speakers built-in

    • Multi-language OSD built-in

    Touch
    Inquiry
    Add to Cart Inquiry Now
    • Overview
      The VIO-100/PC100 and VIO-200/PC100 series Panel PC is based on Intel® Celeron® ​J1900 Quad Core Processor. Designed with flat surface, IP 65 dust/waterproof front panel, and aluminum die-casting front frame with rugged body structure, it is a versatile I/O connections, and rugged reliability industrial panel PC.

      The VIO-100/PC100 and VIO-200/PC100 series Panel PC supports Multi-Mode Display Module (MDM) technology which makes it more flexible in system maintaining and upgrading. It offers modularize expansion I/O, rich connectivity interfaces, wide range (9~50V) DC power input, and high reliability even operating in temperature extremes.

      Featuring with completely high functional, VIO-100/PC100 and VIO-200/PC100 series Panel PC are ruggedized display systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC power input makes VIO-100/PC100 and VIO-200/PC100 series Panel PC are safety system for all industrial applications.
    • Specification
      Display
      LCD Size 15" (4:3)
      Max. Resolution 1024 x 768 (XGA)
      Brightness (cd/m2) 350 / 1000 (Optional)
      Contrast Ratio 700:1
      LCD Color 16.2M
      Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
      Viewing Angle (H-V) 170 / 160
      Backlight MTBF 50000 hrs (LED Backlight)

      Touch
      Resistive 5-wire VIO-215R/PC100, VIO-215R/PC110
      Projected Capacitive VIO-215C/PC100, VIO-215C/PC110

      System
      Processor Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz
      System Chipset SoC integrated
      LAN Chipset GbE1 & GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)
      Audio Codec Realtek ALC888S
      System Memory 1x 204-Pin DDR3L 1066/1333MHz SODIMM. Max. up to 8 GB
      BIOS AMI 64Mbit SPI BIOS
      Watchdog Software Programmable Supports 1~255 sec. System Reset

      Storage
      SSD/HDD 1x External 2.5" SATA HDD Bay
      mSATA 1x mSATA (Shared by 1x Mini PCIe)
      CFast 1x CFast (Shared by 1x mSATA & 1x Mini PCIe)
      SIM Socket 2x External SIM Socket

      Expansion
      Mini PCI Express 1x Full-size Mini PCIe Socket with USIM Socket (PCIe + USB + SATA)
      1x Full-size Mini PCIe Socket with USIM Socket (PCIe + USB)

      I/O
      VGA 1x VGA
      DisplayPort 1x DisplayPort
      COM 4x RS-232/422/485
      2x RS-232/422/485 (Internal)
      USB 1x USB 3.0
      3x USB 2.0
      LAN 2x RJ45
      Audio 1x Mic-in, 1x Line-out
      DIO 8 in / 8 out (Isolated)
      Universal I/O Bracket 2x Universal I/O Bracket (By mini PCIe interface) (VIO-215/PC110 only
      Others 3x WiFi Antenna Holes
      1x Power Switch, 1x AT/ATX Switch,
      1x Remote Power On/Off

      Other Features
      Internal Speaker AMP 10W + 10W
      OSD LCD On/Off, Auto, Menu, Up and Down Multi-language

      Operating System
      Windows Windows 10
      Linux Linux kernel 3.X

      Power
      Power Mode AT, ATX
      Power Supply Voltage 9~50VDC
      Power Ignition Sensing Power Ignition Management
      Power Connector 3-pin Terminal Block
      Power Adaptor Optional AC/DC 12V/5A, 60W
      Power Protection OVP (Over Voltage Protection)
      OCP (Over Current Protection)
      Reverse Protection

      Environment
      Operating Temp. -10°C to 60°C
      Storage Temp. -20°C to 70°C
      Relative Humidity 10%~80% (non-condensing)
      IP Level IP 65 Compliant Front Panel
      Vibration With SSD: 1.5 Grms, 5 - 500 Hz, 0.5 hr/axis
      With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
      Shock 20G, half sine, 11ms
      Standards / Certification CE, FCC Class A

      Physical
      Front Panel Construction Die-cast Flat Surface
      Dimension VIO-215/PC100: 377 (W) x 301 (D) x 64.7 (H) mm
      VIO-215/PC110: 377 (W) x 301 (D) x 86.7 (H) mm
      Weight 5.12 ~ 5.32 kg
      Mounting VESA Mounting Holes 75 x 75mm, 100 x 100mm

      • All product specifications and information are subject without notice.
    • Order Information
      Available Models
      Model No. Description
      VIO-215R/PC100-J1900 15" XGA Resistive Touch Thin Frame Panel PC with Intel® Celeron® Processor J1900, 4x COM
      VIO-215C/PC100-J1900 15" XGA Capacitive Touch Thin Frame Panel PC with Intel® Celeron® Processor J1900, 4x COM
      VIO-215R/PC110-J1900 15" XGA Resistive Touch Thin Frame Panel PC with Intel® Celeron® Processor J1900, 4x COM, 2x Universal I/O Bracket
      VIO-215C/PC110-J1900 15" XGA Capacitive Touch Thin Frame Panel PC with Intel® Celeron® Processor J1900, 4x COM, 2x Universal I/O Bracket

      Optional Accessories
      Model No. Description
      1-E09A06007 Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
      SFICBL022 Power Cord, 3-pin US Type, 180cm
      1-TPCD00002 Power Cord, European Type
      1-TPCD00001 Power Cord, 3-pin UK Type, 180cm

      Packing List
      1x VIO-215/PC100 Series Panel PC
      10x Panel Mount Kit
      1x Utility DVD Driver
      1x Screw Pack
    • Download
      Datasheet
      VIO-215/PC100 Datasheet
      Manual
      VIO/PC100 Series Industrial Panel PCs
      User's Manual for VIO-200/PC100 and VIO-100/PC100 Series Industrial Panel PCs
      Driver
      [PC100] 01.Chipset
      [PC100] 02.Graphic
      [PC100] 03.Audio
      [PC100] 04.LAN
      [PC100] 05.Intel Serial IO Driver
      [PC100] 06.Intel_MBI
      [PC100] 07.Intel_TXE
      [PC100] 08.Intel_TXE_Patch
      [PC100] 09.FintekSerial_Patch
      [PC100] 10.USB3.0
      [PC100] 11.Resistive Touch Screen Driver(option)
