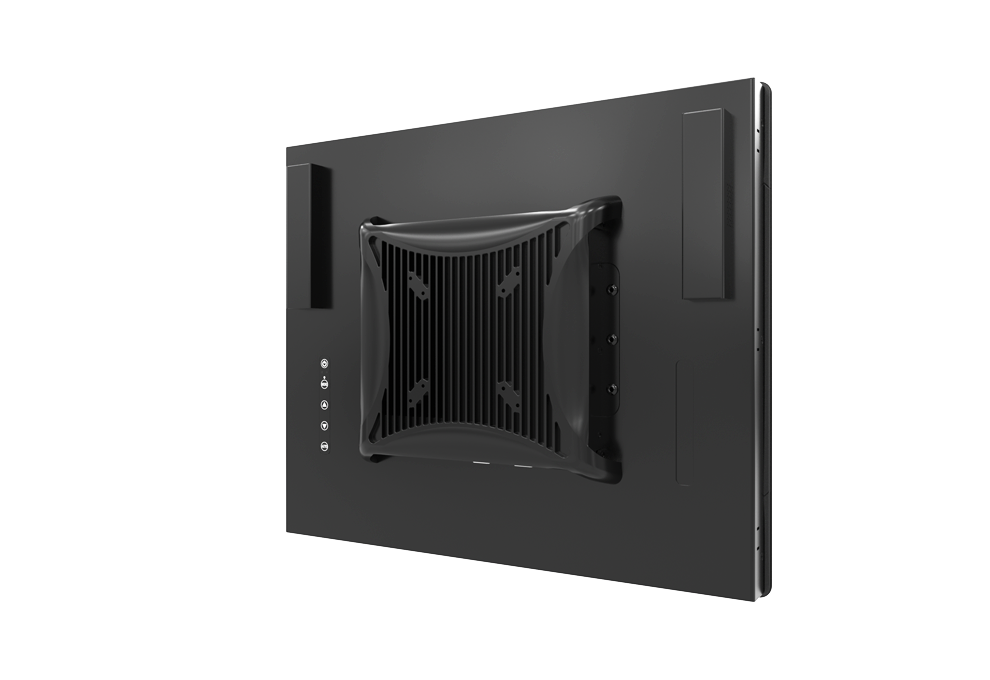

19" 4:3 SXGA Resistive / Capacitive Touch Monitor with 2x 10W Speaker
- 19” TFT SXGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
- 1x VGA, 1x HDMI, 1x DisplayPort, 1x USB 2.0, 1x COM, 1x Audio
- 9 to 48VDC wide range power input
- -10°C to 50°C extended operating temperature
- Designed with Aluminum Die-Casting Front Frame
- IP65 Compliant Front Panel
- Two 10W Internal Speakers Built-in
- Multi-language OSD built-in
OverviewVIO-200/MX200 series touch monitor provide a wide selection of display sizes are available from 12.1” to 23.8” with a format aspect of 4:3 and 16:9, and selected touch type. Featuring with flat surface, IP 65 dust/waterproof front panel, and aluminum die-casting front frame with rugged body structure, it is rugged and reliable for industrial environment. It also supports Multi-Mode Display Module (MDM) technology which allows to configure, upgrade and maintain easily.
VIO-200/MX200 series supports both digital and analog signal input via three types of display interface: VGA, HDMI and DisplayPort. Touch screen can be connected with USB or COM port. It also has multi-language OSD function for adjusting the view options of display. In addition, supporting wide range power input from 9 to 48VDC and high reliability even operating in temperature extremes.Featuring with completely cable-less designed and high functional, VIO-200/MX200 series are ruggedized display systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection and reverse protection DC power input makes VIO-200/MX200 series are safety system for all industrial applications.
Display LCD Size 19” (4:3) Max. Resolution 1280 x 1024 (SXGA) Brightness (cd/m2) 350 / 1000 (Optional) Contrast Ratio 1000:1 LCD Color 16.7M Pixel Pitch (mm) 0.294 (H) x 0.294 (V) Viewing Angle (H-V) 170 / 160 Backlight MTBF 50000 hrs (LED Backlight) Touch Resistive 5-wire VIO-219R/MX200 Projected Capacitive VIO-219C/MX200 I/O VGA 1x VGA Input HDMI 1x HDMI Input DisplayPort 1x DisplayPort Input USB 2.0 1x USB 2.0 Input COM Port 1x COM Port Input (Resistive Touch Only) Audio 1x Audio Input Other Features Internal Speaker AMP 10W + 10W OSD LCD On/Off, Auto, Menu, Up and Down Multi-language Power Power Supply Voltage 9~48VDC Power Connector 3-pin Terminal Block Power Adaptor Optional AC/DC 12V/5A, 60W Power Protection OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection Environment Operating Temp. -10°C to 50°C Storage Temp. -20°C to 60°C Relative Humidity 10%~80% (non-condensing) IP Level IP 65 Compliant Front Panel Vibration 1.5 Grms, 5 - 500 Hz, 0.5 hr/axis Shock 20G, half sine, 11ms Standards / Certification CE, FCC Class A Physical Front Panel Construction Die-cast Flat Surface Dimension 450 (W) x 375 (D) x 71 (H) mm Weight 7.38 kg ~ 7.51 kg Mounting VESA Mounting Holes 75 x 75mm, 100 x 100mm
- All product specifications and information are subject without notice.
Order InformationAvailable Models
Model No. Description VIO-219R/MX200 19" 4:3 SXGA Resistive Touch Thin Frame Monitor with 2x 10W Speaker VIO-219C/MX200 19" 4:3 SXGA Capacitive Touch Thin Frame Monitor with 2x 10W Speaker
Model No. Description 1-E09A06008 Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch SFICBL022 Power Cord, 3-pin US Type, 180cm 1-TPCD00002 Power Cord, European Type, 180cm 1-TPCD00001 Power Cord, 3-pin UK Type, 180cm Packing List 1x VIO-219/MX200 Series Touch Monitor 14x Panel Mount Kit 1x USB Cable 1x VGA Cable 1x Screw Pack
