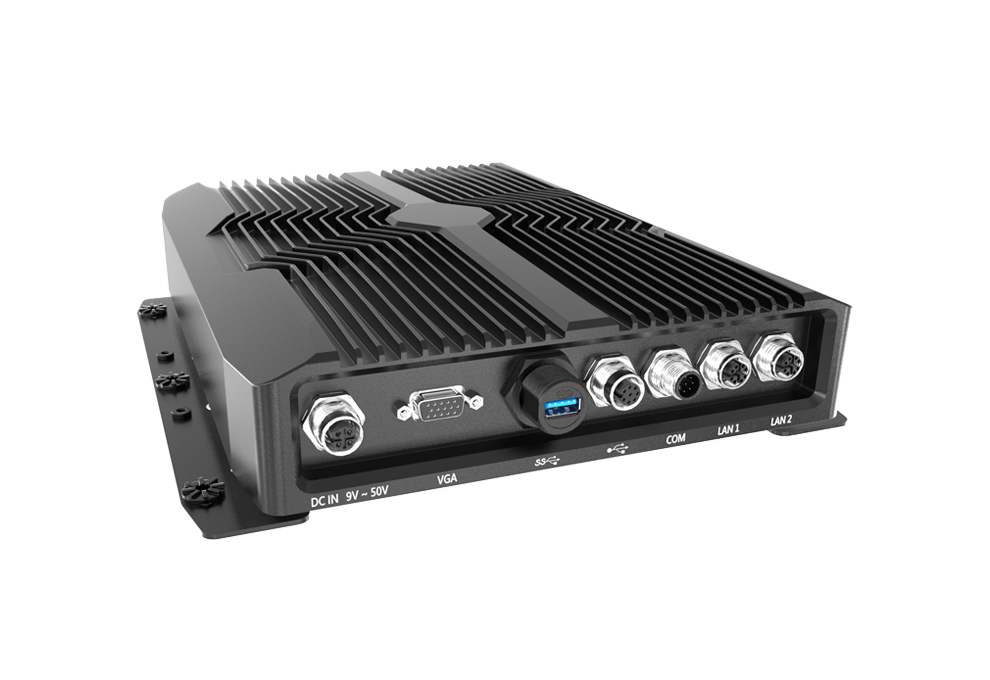

    WCO-3400-IP67

    Advanced IP67 Waterproof System with Intel® Core™ i5/i3 Processor, 4GB RAM, 128GB SSD
    FEATURES

    • Intel® 7th Gen (Kabylake-U) Processor Core™ i5-7300U, Core™ i3-7100U

    • 4GB DDR4 1866/2133MHz SODIMM

    • Single display supported by 1x VGA (waterproof connector)

    • 2x LAN by M12 X-Code 8-pin

    • 1x RS-232/422/485 by M12 D-Code 8-pin, 1x USB 3.0 (waterproof connector), 2x USB 2.0 by M12 D-Code 8-pin

    • 1x 128GB 2.5” SATA SSD

    • Full system IP67 level dustproof & waterproof

    • 9 to 50VDC wide range power input

    • -40°C to 70°C extended operating temperature

    Datasheet Add to Cart
    • Overview
      Based on Intel® Core™ i5-7300U / i3-7100U, Dual Core processor, WCO-3400 series IP65/IP67 waterproof system are designed for wet conditions applications such as food & beverage processing, outdoor digital signage and surveillance applications. These systems are built with an extremely rugged enclosure, as well as the industrial-grade components, making these units dustproof and waterproof. WCO-3400 series offers modularize flexible I/O, wide range (9~50V) DC power input, and high reliability even operating in temperature extremes (-40°C ~ +70°C).
    • Specification
      System
      Processor 7th Gen Intel® Core™ i5-7300U Processor, Dual Core, 3MB Cache, up to 3.5 GHz
      7th Gen Intel® Core™ i3-7100U Processor, Dual Core, 3MB Cache, 2.4 GHz
      System Chipset SoC integrated
      LAN Chipset GbE1: Intel® I219LM (Support Wake-on-LAN and PXE)
      GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)
      Audio Codec Realtek ALC888S
      System Memory 4GB DDR4 1866/2133MHz SODIMM
      BIOS AMI 128Mbit SPI BIOS
      Watchdog Software Programmable Supports 1~255 sec.
      System Reset

      Display
      VGA 1x VGA (waterproof connector)
      Multiple Display Single Display

      Storage
      SSD/HDD 1x 128GB 2.5" SATA SSD

      I/O
      COM 1x RS-232/422/485 by M12 D-code 8-pin
      USB 1x USB 3.0 (waterproof connector)
      2x USB 2.0 by M12 D-code 8-pin
      LAN 2x LAN by M12 X-code 8-pin
      Others 1x Power Switch

      Operating System
      Windows Windows 10
      Linux Linux kernel 4.X

      Power
      Power Mode ATX
      Power Supply Voltage 9~50VDC
      Power Connector M12 A-code 4-pin
      Power Adaptor Optional AC/DC 12V/5A, 60W
      Optional waterproof power input cable
      Power Protection OVP (Over Voltage Protection)
      OCP (Over Current Protection)
      Reverse Protection

      Physical
      Operating Temp. -40°C to 70°C
      Storage Temp. -40°C to 85°C
      Relative Humidity 10% to 95% (non-condensing)
      Vibration With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
      With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
      Shock With SSD: 50G, half sine, 11ms
      Standards / Certification IP67, CE, FCC Class A

      Physical
      Construction Extruded Aluminum with Heavy Duty Metal
      Dimension 231 (W) x 292 (D) x 56.5 (H) mm
      Weight 4.21 kg
      Mounting Wall Mounting

      • All product specifications and information are subject without notice.
    • Order Information
      Available Models
      WCO-3400-IP67-7300U Advanced IP67 Waterproof System with Intel® i5-7300U Processor, 4GB RAM, 128GB SSD
      WCO-3400-IP67-7100U Advanced IP67 Waterproof System with Intel® i3-7100U Processor, 4GB RAM, 128GB SSD

      Ordering Information
      1-E09A06008 Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
      1-TXXX00003 Waterproof Power Input Cable 1.5M
      1-TVGA00003 Waterproof VGA Cable 1.5M
      1-TUSB00016 Waterproof USB 3.0 Cable 1.5M
      1-TUSB00015 Waterproof USB 2.0 Cable 1.5M
      1-TCOM00011 1 Waterproof COM Cable 1.5M
      1-TLAN00006 Waterproof LAN Cable 1.5M

      Packing List
      1x WCO-3400 Series Embedded System
      1x Utility DVD Driver
      1x Wall Mount Kit
      1x Waterproof Connector Cover Set
