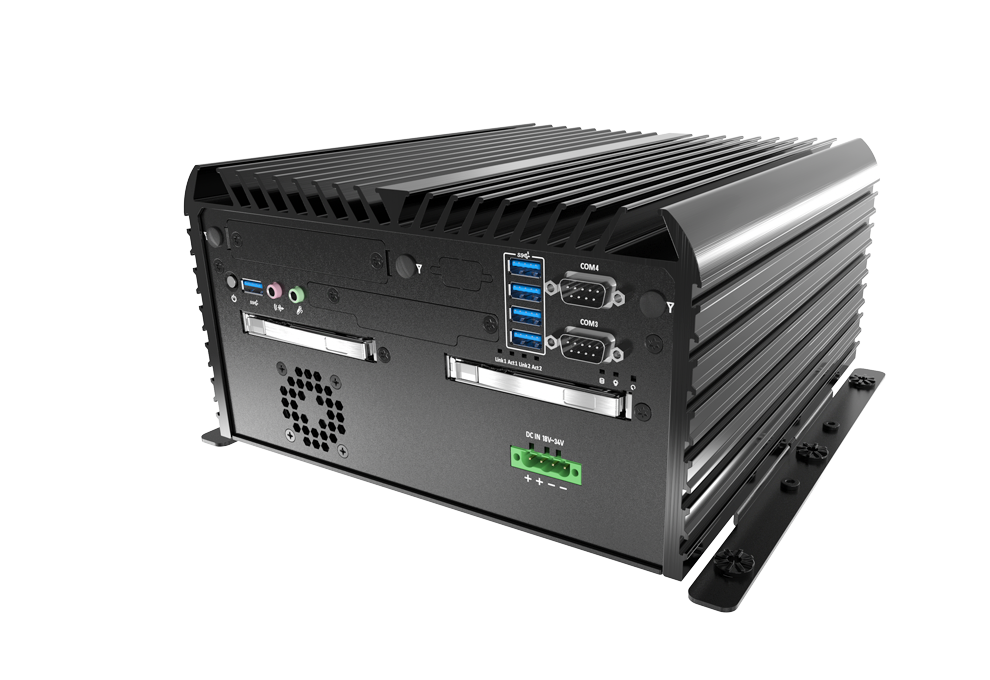

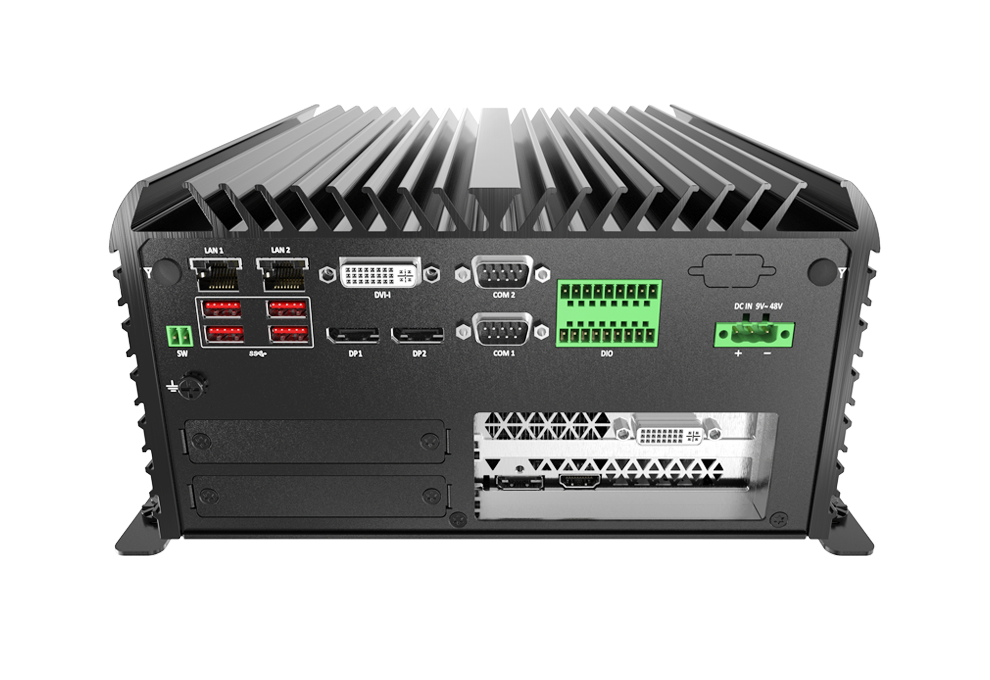

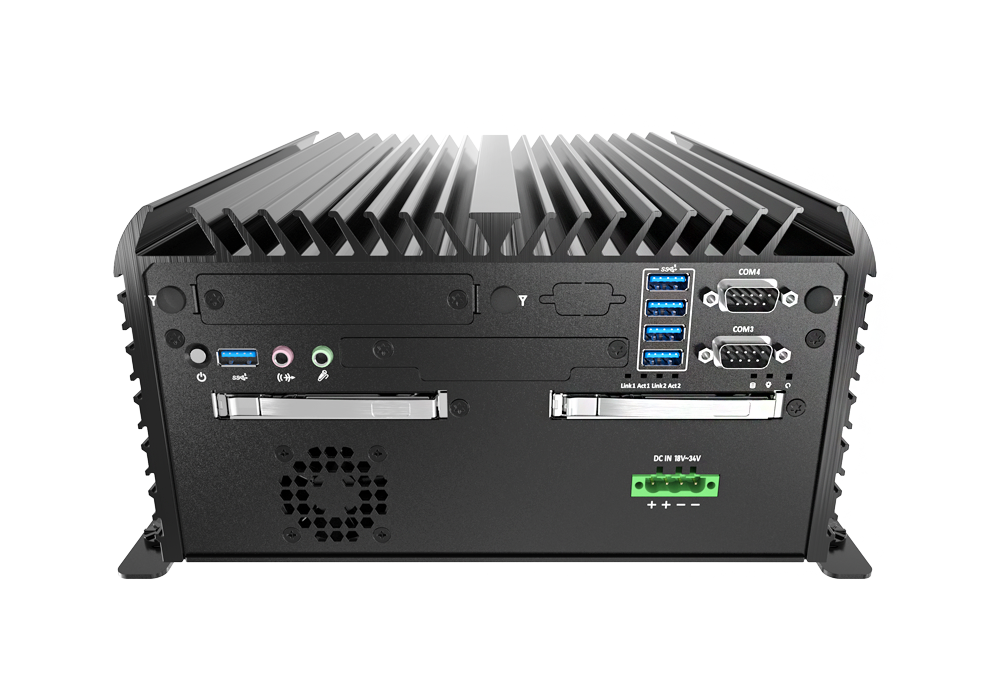

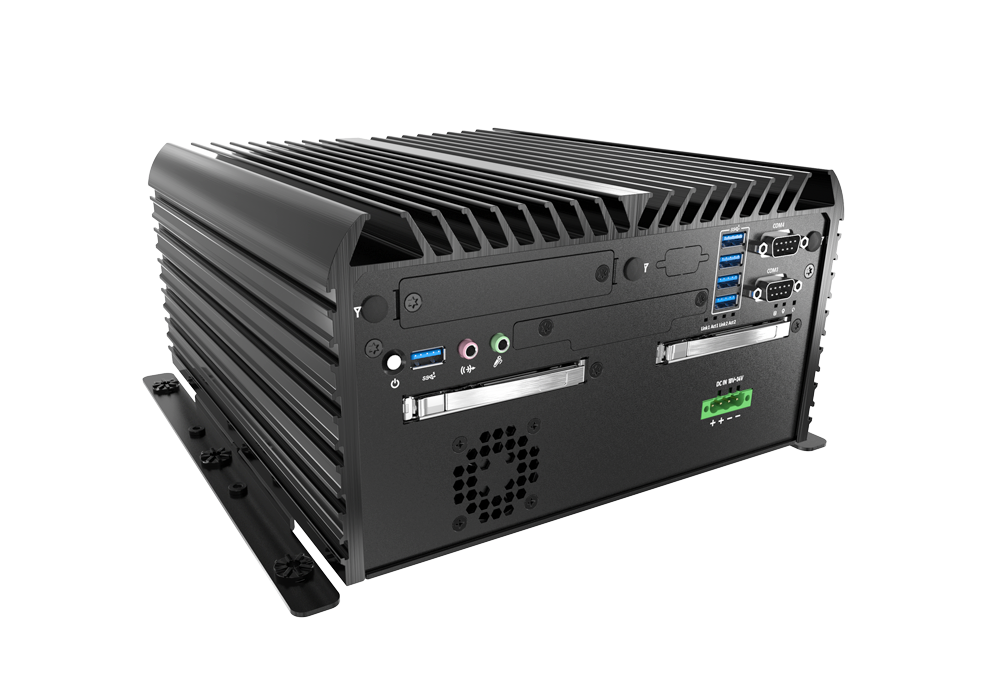

    RCO-6120-2060S

    GPU Computing System with LGA 1151 for Intel 8th/9th Gen Processor and Q370 PCH, RTX 2060 Super integrated
    FEATURES

    • LGA 1151 socket for 8th/9th Gen. Intel® CFL-R S ProcessorPentium® / Celeron® Desktop Processor

    • Intel® Q370 chipset

    • NVIDIA GeForce® RTX 2060 Super Graphics engine based on NVIDIA TurningTM GPU architecture

    • 2x 260-pin DDR4 SODIMM. Max. up to 64GB

    • 6 Display interface supported by 1x DVI-I, 1x DVI-D 3x DisplayPort, 1x HDMI

    • 2x Intel® GbE supporting Wake-on-LAN and PXE

    • 4x 2.5” SATA HDD Bay and 2x mSATA with RAID 0, 1, 5, 10 support

    • 1x M.2 (M Key, NVMe PCIe x4, 2280); 1x M.2 (E Key, PCIe x2, 2230, USB 2.0, Support CNVi)

    • 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode

    • Wide Operating Temperature (-25°C to 60°C)

    • Power ignition management

    Datasheet Add to Cart
    • Overview
      The GPU series adopts 9th Gen. Intel® Core™  i7-9700E (4.4GHz, 8 Cores) / i5-9500E (4.2GHz, 6 Cores) / i3-9100E (3.7GHz, 4 Core) / i7-9700TE (3.8GHz, 8 Cores) / i5-9500TE (3.6GHz, 6 Cores) / i3-9100TE (3.2GHz, 4 Core) or 8th Gen. Intel® Core™ i7-8700T (4.0GHz, 6 Cores) / i5-8500T (3.5GHz, 6 Cores) / i3-8100T (3.1GHz, 4 Cores) or Pentium® G5400T (3.1GHz, Dual Core) / Celeron® G4900T (2.9GHz, Dual Core) Desktop processor, (LGA 1151) which promises breakthrough performance and power efficiency over previous micro-architectures for high performance graphics, dramatic high-resolution video playback, outstanding system performance and responsiveness, and stronger security. It is designed with customers in mind to deliver an excellent system performance, higher reliability and robustness in a compact construction.

      C&T GPU Computing System is your great solution for Machine Vision, Embedded System, Traffic Vision, Telemedicine, Intelligent Control, Deep Learning, Artificial Intelligence, Voice Reorganization and any graphics performance driven Industry 4.0/IIoT applications.
    • Specification
      System
      Processor Support 8th/9th Gen Intel® CFL-R S Processor (LGA 1151, 65W/35W TDP)
      Intel® Core™ i7-9700E, 8 Cores, 12MB cache, up to 4.4 GHz
      Intel® Core™ i5-9500E, 6 Cores, 9MB Cache, up to 4.2 GHz
      Intel® Core™ i3-9100E, 4 Core, 6MB Cache, 3.7 GHz
      Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz
      Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz
      Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz
      Intel® Core™ i7-8700T, 6 Cores, 12MB cache, up to 4.0 GHz
      Intel® Core™ i5-8500T, 6 Cores, 9MB Cache, up to 3.5 GHz
      Intel® Core™ i3-8100T, 4 Cores, 6MB Cache, 3.1 GHz
      Intel® Pentium® G5400T, 2 Cores, 4MB Cache, up to 3.1 GHz
      Intel® Celeron® G4900T, 2 Cores, 2MB Cache, up to 2.9 GHz
      System Chipset Intel® Q370 Express Chipset
      LAN Chipset GbE1: Intel I219LM (Support Wake-on-LAN and PXE)
      GbE2: Intel I210-AT (Support Wake-on-LAN and PXE)
      Audio Codec Realtek ALC888S
      System Memory 2x 260-Pin DDR4 2400/2666MHz SODIMM.
      Max. up to 64GB (Un-buffered and Non-ECC)
      BIOS AMI 256Mbit SPI BIOS
      Watchdog Software Programmable Supports 1~255 sec. System Reset
      TPM TPM 2.0

      Display
      Graphics Intel® UHD Graphics 610/630 or NVIDIA GeForce ® RTX 2060 Super
      DVI 1x DVI-I, 1x DVI-D
      HDMI 1x HDMI
      DisplayPort 3x DisplayPort
      Multiple Display 6 Display interfaces

      Storage
      SSD/HDD 2x Internal 2.5" SATA HDD Bay (support H=9mm)
      2x Removable 2.5" SATA HDD Bay (support H=7mm, hot-swappable)
      Support RAID 0, 1, 5, 10
      mSATA 1x mSATA (Shared by 1x Mini PCI Express)
      M.2 1x M.2 (M Key, NVMe PCIe x4, 2280)
      1x M.2 (E Key, PCIe x2, 2230, USB 2.0, Support CNVi)
      SIM Socket 2x External SIM socket

      Expansion
      Graphics 2x Full-size Mini PCIe (1x shared by 1x mSATA)
      PCIe 1x PCIe x16 for GPU Card
      4-Port GbE (Optional) 4-port GbE module with Intel® I350-AM4 Chipset,
      RJ-45 or M12 connector (PoE optional) Occupied one Universal I/O Slot
      2-Port GbE (Optional) 2-Port RJ45 10GbE with Intel X710-AT2 Chipset,
      Occupied one Universal I/O Slot
      4-Port USB (Optional) 4-Port USB with Renesas uPD720201K8 host controller
      Occupied one Universal I/O Slot
      5G (Optional) 1x M.2 for 5G (B Key, PCIe x4, USB 3.0, 3042/3052)
      Including 2x SIM socket, 1x SIM switch
      Occupied one Universal I/O Slot

      Operating System
      Windows Windows 10
      Linux Linux kernel 5.X

      I/O
      COM 4x RS-232/422/485 ; 2x RS-232/422/485 (internal)
      USB 4x USB 3.2 Gen 2 (10 Gbps)
      5x USB 3.2 Gen 1 (5 Gbps)
      1x USB 3.2 Gen 1 header (5 Gbps, internal)
      LAN 2x RJ45
      Audio 1x Mic-in, 1x Line-out
      DIO 8 in / 8 out (Isolated)
      Universal I/O Bracket 3x Universal I/O Bracket (By mini PCIe interface)
      Others 5x WiFi Antenna Holes
      1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
      1x PC/Car Mode Switch, 1x Delay Time Switch
      1x Removable CMOS Battery

      Power
      Power Mode AT, ATX
      Power Supply Voltage 9~48VDC, 12~48VDC for GPU
      Power Ignition Sensing Power Ignition Management
      Power Connector 3-pin Terminal Block,
      3-pin or 4-pin Terminal Block for GPU
      Power Adaptor Optional AC/DC 24V, 220W/ 280W
      Optional AC/DC 24V, 280W for GPU
      Power Protection OVP (Over Voltage Protection);
      OCP (Over Current Protection)
      Reverse Protection

      Environment
      Operating Temp. -25°C to 60°C (35 / 65W CPU)
      Storage Temp. -30°C to 85°C
      Relative Humidity 10% to 95% (non-condensing)
      Vibration With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis
      With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
      Shock With SSD: 20G, half sine, 11ms
      Standards / Certification CE, FCC Class A, E-Mark,
      EMC Conformity with EN 50155, EN 50121-3-2

      Physical
      Construction Extruded Aluminum with Heavy Duty Metal
      Dimension 240 (W) x 261 (D) x 127.2 (H) mm
      Weight 9.5 ~ 10.4 kg
      Mounting Wall Mounting

      • For 8th/9th CPUs configured to run at 65W, operating temperatures will be limited to 60°C.
      • 5W CPUS may experience thermal throttling depending on extreme application workloads; this is also due to an increase in the physical CPU cores from the Intel silicon (up to 8 cores). Please note, this does not indicate system malfunction or problems in the fanless design. Please consult our embedded engineers for the best configuration to match your application requirements.
      • All product specifications and information are subject without notice.
    • Order Information
      Available Models
      RCO-6120-2060S GPU Computing System with LGA 1151 for Intel 8th/9th Gen Processor and Q370 PCH, RTX 2060 Super integrated

      Ordering Information
      1-E09A22801 Adapter AC/DC 24V/11.67A 280W with 3-pin Terminal Block Plug 5.0mm Pitch
      1-E09A22102 Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch
      1-TPCD00005 Power Cord, 3-pin US Type, 180cm
      1-TPCD00002 Power Cord, European Type, 180cm
      1-TPCD00001 Power Cord, 3-pin UK Type, 180cm

      Packing List
      1x RCO-6100 Series Embedded System
      1x Wall Mount Kit
      1x Accessory Kit
