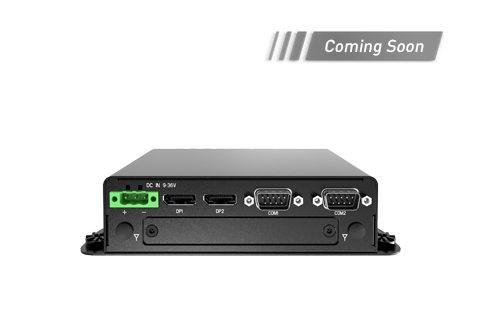

BCO-1000-EHL Fanless Mini Computer


    Low-Power X86 Intel® Celeron® J6413 (Elkhart Lake) Series Processors

    World Class Certifications. World-Class Products

    Edge deployments applications are often exposed to harsh industrial and environmental conditions, demanding mission-critical operational reliability. UL (Underwriter Laboratories) certifications provide an added layer of assurance and peace of mind for end users seeking an edge computing solution that has undergone thorough testing and validation for safety and standard compliance. C&T, a leader in rugged edge computing, provides a complete UL certification for our hardened and rugged portfolio of industrial computers for enhanced safety and quality.



    The BCO-1000-EHL Series seamlessly delivers x86 edge computing performance for IIoT and AIoT workloads within an ultra-compact fanless design. Leverage its low-power consumption and miniature footprint for space-constrained deployments at the rugged edge.

    • Intel® Celeron® J6413 Processor (10W TDP)
    • Wide Operating Temperature (-20°C to 50°C)
    • MIL-STD-810G Compliant (50G Shock & 5Grms Vibration)
    • 4G/LTE Wireless Connectivity
    • Power Ignition Management
    • Built-in CAN Bus
    • Intel® NUC Mini PC Alternative



    Fanless & Cableless Design

    Modular I/O Expansion


    Wide Temperature

    Shock And Vibration Resistance


    TPM 2.0 Security

    Intel NUC Alternatives: Fanless Mini PCs


    Looking for a more Industrial-grade alternative to an Intel® NUC Mini PCs? C&T’s rugged and fanless mini pcs provide the same x86 intel architecture with even more flexibility, reliability and embedded longevity.

    • Rugged, Fanless and Cabless
    • Modular EDGEBoost I/Os
    • 15 year embedded longevity and support

    Purpose-Built For The Industrial Edge IoT


    Powered by Intel® Celeron J6413 Series processors (Formally known as Elkhart Lake), the BCO-1000-EHL utilizes quad-core performance while remaining at a power-efficient 10W TDP.

    Processor Intel® Celeron® J6413
    Cores 4
    Max TDP 10W
    CPU High Frequency Mode 1.8GHz
    CPU Burst (Turbo) Mode 3.0GHz
    Graphics High Frequency Mode 400MHz
    Graphics Burst (Turbo) Mode 800MHz
    Intel® UHD Graphics 16EUs

     Intel® Celeron® J6413 Compared To Intel® Celeron® J1900

    Up to 60%

    Performance Increase

    10nm VS. 22nm

    Efficient Power Consumption with 10W TDP

    Up to 4x

    Memory Boost (DDR4 32GB)

    Up to 2.3X

    Faster Single & Multi Threaded Performance

    Up to 5X

    Faster Graphics With Intel UHD Ggraphics

    15 Years

    Extended Longevity with IOTG Product Lifecycle

    Industrial Grade Design


    The BCO-1000-EHL is purpose-built to perform reliably in rugged industrial environments where traditional desktops are prone to failure.

    • Wide Temperature Range: -20°C to 50°C
    • 50G Shock & 5Grms Vibration (MIL-STD-810G Compliance)
    • Wide Voltage Input: 9VDC-36VDC Input
    • Over Current & Over Voltage Protection

     IIoT-Centric I/O And 4K Display Support

    Although small, the BCO-1000-EHL offers essential IIoT-centric I/O that are compatible with both legacy and Industry 4.0 connectivity.

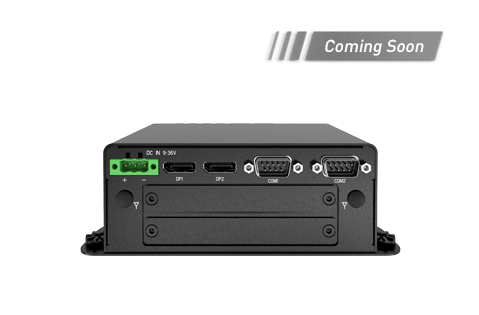

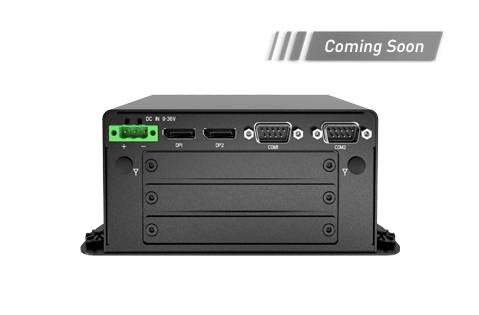

    Scale With EDGEBoost I/O (Modular Daughterboards)


    Compatible with the BCO-1000-EHL, EDGEBoost I/O are configurable I/O modules for additional connectivity and customizability.

    • Faster Time-to-Market
    • Flexibility & Scalability
    • Modular I/O Configurations
    • Quick Maintenance & Upgradability

    Stay Connected With Mobile IoT Telematics


    The system features an external SIM socket compatible with 4G/LTE cellular connectivity through a modular add-in card. The 4G/LTE module supports low-latency wireless connectivity and better bandwidth for IoT data telemetry

    • 4G/LTE
    • Wi-Fi 6
    • Bluetooth 5

    Built-In CAN Bus For In-Vehicle Communication


    The embedded CAN bus (Controller Area Network) allows the RCO-1000-EHL to communicate directly with other machines and network devices, reducing the need for a host computer and simplifying cable routing.

    Support For Power Ignition Management


    The BCO-1000-EHL Series has an optional power ignition module for ignition sensing and management. The power ignition management delays the system shutdown after engine shutoff for a pre-determined time interval.

    TPM 2.0: Root-Level Hardware Security


    The BCO-1000-EHL implements a TPM 2.0 chip that safely encrypts business-critical data. This integrated trust platform module’s root keys enable password protection, device authentication, and future-ready cybersecurity to defend the device’s data and transmission against malicious attacks.

    Versatile Mounting Options


    The BCO-1000-EHL supports two standardized industrial mounting configurations, Wall mount and DIN-Rail mount. This provides enhanced flexibility in mounting locations, especially in deployments where space is a limiting factor.
