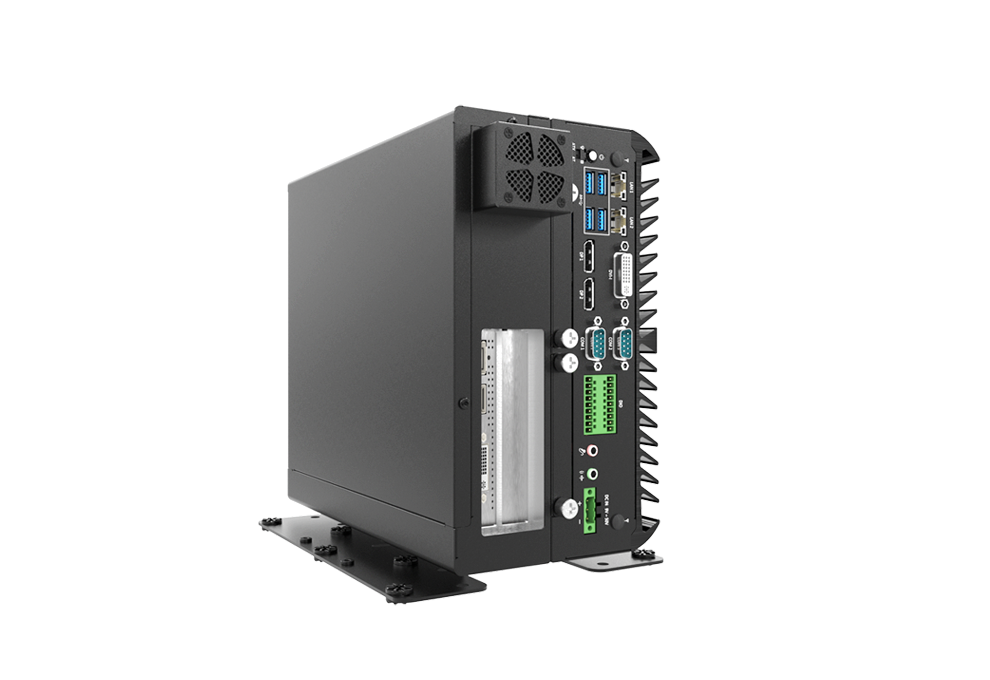

    GPU Computing System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, GTX 1050Ti Integrated

    • Support 6th & 7th Gen Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Desktop Processor (LGA 1151)

    • Intel® Q170 chipset

    • NVIDIA GeForce® GTX 1050 Ti Graphics engine based on NVIDIA Pascal™ GPU architecture

    • 2x DDR4 SODIMM. max up to 32GB

    • 6x display interface supported by 2x DVI-I, 3x DisplayPort, 1x HDMI

    • 2x Intel® GbE supporting Wake-on-LAN and PXE

    • 2x 2.5” SATA HDD Bay, 2x mSATA (shared by 2x mini PCIe), 1x CFast

    • 3x full-size mini PCIe for communication or expansion modules

    • 4x RS-232/422/485 (w/ 2x internal), 4x USB 3.0, TPM 2.0

    • 8x DI + 8x DO with isolation

    • 9 to 50VDC wide range power input supporting AT/ATX mode

    • -25°C to 70°C extended operating temperature

    Datasheet Add to Cart
    • Overview
      The GPU series adopts 7th Gen. Intel® Core™ i7-7700T (3.8GHz, Quad Core) / i5-7500T (3.3GHz, Quad Core) / i3-7101TE (3.4GHz, Dual Core) or 6th Gen. Intel® Core™ i7-6700TE (3.4GHz, Quad Core) / i5-6500TE (3.3GHz, Quad Core) / i3-6100TE (2.7GHz, Dual Core) or Pentium® G4400TE (2.4GHz, Dual Core)/ Celeron® G3900TE (2.3GHz, Dual Core) Desktop processor (LGA 1151) which promises breakthrough performance and power efficiency over previous micro-architectures for high performance graphics, dramatic high-resolution video playback, outstanding system performance and responsiveness, and stronger security. It is designed with customers in mind to deliver an excellent system performance, higher reliability and robustness in a compact construction.

      C&T GPU Computing System is your great solution for Machine Vision, Embedded System, Traffic Vision, Telemedicine, Intelligent Control, Deep Learning, Artificial Intelligence, Voice Reorganization and any graphics performance driven Industry 4.0/IIoT applications.
    • Specification
      Processor Support 6th & 7 th Gen Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Desktop Processor (LGA 1151)
       - 7th Gen Intel® Core™ i7-7700T, Quad Core, 8MB cache, up to 3.8 GHz
       - 7th Gen Intel® Core™ i5-7500T, Quad Core, 6MB cache, up to 3.3 GHz
       - 7th Gen Intel® Core™ i3-7101TE, Dual Core, 3MB Cache, 3.4 GHz
       - 6th Gen Intel® Core™ i7-6700TE, Quad Core, 8MB Cache, up to 3.4 GHz
       - 6th Gen Intel® Core™ i5-6500TE, Quad Core, 6MB Cache, up to 3.3 GHz
       - 6th Gen Intel® Core™ i3-6100TE, Dual Core, 4MB Cache, 2.7 GHz
       - Intel® Pentium® G4400TE, Dual Core, 3MB Cache, 2.4 GHz
       - Intel® Celeron® G3900TE, Dual Core, 2MB Cache, 2.3 GHz
      System Chipset Intel® Q170 Express Chipset
      LAN Chipset GbE1: Intel® I210-AT (Support Wake-on-LAN and PXE)
      GbE2: Intel® I219LM (Support Wake-on-LAN and PXE)
      Audio Codec Realtek ALC888S
      System Memory 2x DDR4 1866/2133MHz SODIMM.
      Max. up to 32GB
      BIOS AMI 128Mbit SPI BIOS
      Watchdog Software Programmable Supports 1~255 sec.
      System Reset
      TPM TPM 2.0
      Graphics Intel® HD Graphics 530 / 630 or NVIDIA GeForce® GTX 1050 Ti
      DVI 2x DVI-I, support resolution 1920 x 1200
      DisplayPort 3x DisplayPort, support resolution 4096 x 2304
      HDMI 1x HDMI
      Multiple Display 6 Display Interfaces
      2x Removable 2.5" SATA HDD Bay
      Support RAID 0, 1, 5, 10
      mSATA 2x mSATA (shared by 2x Mini PCI Express)
      CFast 1x CFast
      Mini PCI Express 3x Full-size Mini PCIe (shared by 2x mSATA)
      Operating System
      Windows 6th Gen CPU: Windows 10, Windows 7, WES7
      7th Gen CPU: Windows 10
      Linux Linux kernel 4.X
      COM 2x RS-232/422/485
      2x RS-232/422/485 (internal)
      USB 4x USB 3.0
      LAN 2x RJ45
      Audio 1x Mic-in,  1x Speaker-out
      DIO 8 in / 8 out (Isolated)
      Others 2x WiFi Antenna Holes
      1x Power Switch,  1x AT/ATX Switch
      Power Mode AT, ATX
      Power Supply Voltage 9~50VDC
      Power Connector 3-pin Terminal Block
      Power Adaptor Optional AC/DC 24V/9.2A, 220W
      Power Protection OVP (Over Voltage Protection)
      OCP (Over Current Protection)
      Reverse Protection
      Operating Temp. -25°C to 70°C
      Storage Temp. -40°C to 85°C
      Relative Humidity 10% to 95% (non-condensing)
      Vibration With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis
      With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
      Shock With SSD: 50G, half sine, 11ms
      Standards / Certification CE, FCC Class A
      Construction Extruded Aluminum with Heavy Duty Metal
      Dimension 137 (W) x 256 (D) x 240 (H) mm
      Weight 7.71 kg
      Mounting Wall Mounting
      DIN-Rail Mounting (Optional)
      • All product specifications and information are subject without notice.
    • Order Information
      Available Models
      VCO-6020-1050TI GPU Computing System with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH, GTX 1050Ti Integrated
      Ordering Information
      1-E09A22102 Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch
      SFICBL022 Power Cord, 3-pin US Type, 180cm
      1-TPCD00002 Power Cord, European Type, 180cm
      1-TPCD00001 Power Cord, 3-pin UK Type, 180cm
      Packing List
      1x VCO-6020-1050TI Embedded System
      1x Utility DVD Driver
      1x Wall Mount Kit
      1x Accessory Kit
      1x DVI to VGA Adapter
