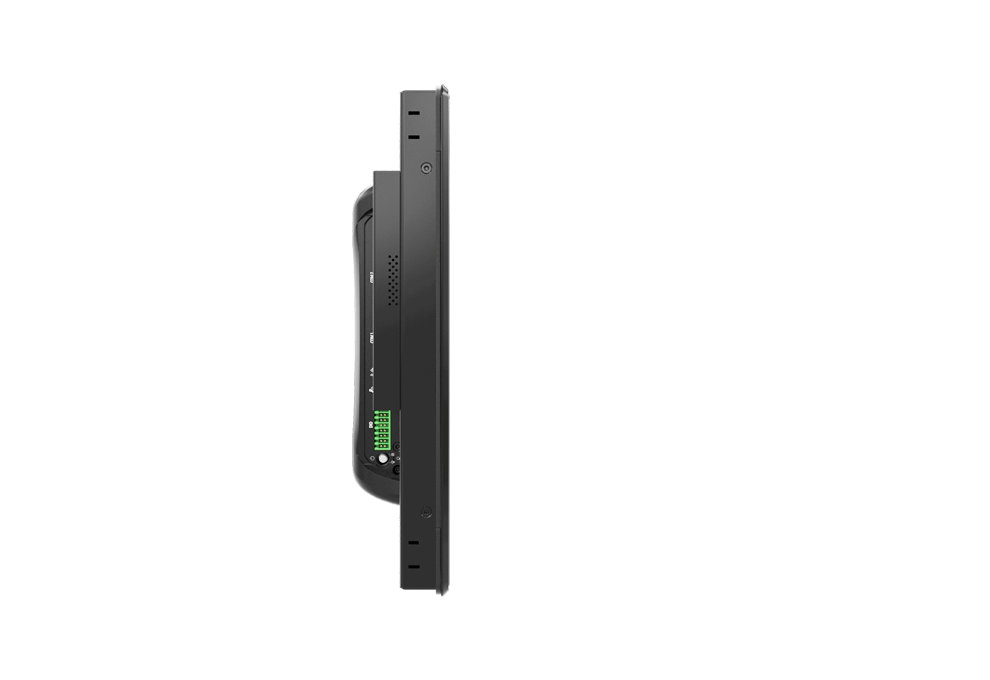

    VIO-215-PC100-EHL (NEW)

    15" XGA Resistive / Capacitive Touch Thin Frame Industrial Touchscreen Computer with Intel® Celeron® J6413
    FEATURES

    • 15" TFT XGA 4:3 LCD with resistive 5-wire / projected capacitive touch

    • Intel® Celeron® Processor J6413

    • 1x 260-pin DDR4 SODIMM. max up to 32GB

    • 1x 2.5" SATA HDD bay, 1x mSATA, 2x SIM socket

    • 1x Full-size Mini PCIe (USB 2.0, SATA)

    • 2x LAN, 1x DP, 1x HDMI, 1x LVDS

    • 6x RS-232/422/485 (w/ 2x internal)

    • 2x USB 3.2 Gen 2, 2x USB 2.0

    • 8x DI + 8x DO with isolation

    • 9 to 36VDC wide range power input

    • 0°C to 60°C extended operating temperature

    • Designed with aluminum die-casting front frame

    • IP65 compliant front panel / Fanless Industrial Display Computer

    • Two 10W internal speakers built-in

    • UL Listed

    • 1x Universal I/O Bracket for Expansion (VIO-215/PC100-EHL-1E Only)

    Datasheet Add to Cart
    • Overview
      The VIO-100/PC100-EHL and VIO-200/PC100-EHL series Panel PC is based on Intel® Celeron® ​J6413 Quad Core Processor. Designed with flat surface, IP 65 dust/waterproof front panel, and aluminum die-casting front frame with rugged body structure, it is a versatile I/O connections, and rugged reliability industrial panel PC.

      The VIO-100/PC100-EHL and VIO-200/PC100-EHL series Panel PC supports Multi-Mode Display Module (MDM) technology which makes it more flexible in system maintaining and upgrading. It offers modularize expansion I/O, rich connectivity interfaces, wide range (9~36V) DC power input, and high reliability even operating in temperature extremes.

      Featuring with completely high functional, VIO-100/PC100-EHL and VIO-200/PC100-EHL series Panel PC are ruggedized display systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC power input makes VIO-100/PC100-EHL and VIO-200/PC100-EHL series Panel PC are safety system for all industrial applications.
    • Specification
      Display
      LCD Size 15" (4:3)
      Max. Resolution 1024 x 768 (XGA)
      Brightness (cd/m2) 350 / 1000 (Optional)
      Contrast Ratio 1000:1
      LCD Color 16.7M
      Pixel Pitch (mm) 0.297(H) x 0.297(V)
      Viewing Angle (H-V) 170/160
      Backlight MTBF 50000 hrs (LED Backlight)

      Touch
      Projected Capacitive VIO-215C-PC100-EHL, VIO-215C-PC100-EHL-1E
      Resistive 5-Wire VIO-215R-PC100-EHL, VIO-215R-PC100-EHL-1E

      System
      Processor Intel® Celeron® J6413 Processor Quad core (1.5M Cache,1.8GHz up to 3.00 GHz) FC-BGA16F, Tray 10W
      System Chipset SoC integrated
      LAN Chipset GbE1: Intel® I210 (Support Wake-on-LAN and PXE)
      2.5 GbE2: Intel® I225 (Support Wake-on-LAN and PXE)
      Audio Codec Realtek ALC888S
      System Memory 1x 260-Pin DDR4 2400/2667/3200MT/s SODIMM.
      Max. up to 32 GB
      BIOS AMI 128Mbit SPI BIOS
      TPM TPM 2.0
      Watchdog Software Programmable Supports 1~255 sec. System Reset

      Storage
      M.2 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
      1x M.2 (B Key, PCIex 2 + USB 3.2 Gen1, 2242/3042/3052)
      mSATA 1x mSATA
      SIM Socket 2x External SIM socket
      SSD/HDD 1x Removable 2.5" SATA HDD Bay

      Expansion
      Mini PCIe 1x Full-size Mini PCIe (USB 2.0, SATA)
      PCIe 1x PCIe x4 (1-lanes), VIO-215-PC100-EHL-1E Only

      I/O
      Audio 1x Mic-in, 1x Line-out
      CAN 2x CAN 2.0 A/B 2-pin Header (Internal)
      COM 4x RS-232/422/485
      2x RS-232/422/485 (internal)
      DIO 8 in / 8 out (Isolated)
      LAN 2x RJ45
      Universal I/O Bracket VIO-215-PC100-EHL-1E (only):
      1x Universal I/O Bracket (By mini PCIe interface)
      USB 2x USB 3.2 Gen 2 (10 Gbps)
      2x USB 2.0
      DP 1x DisplayPort 1.2 (4096 x 2160@60Hz)
      HDMI 1x HDMI 2.0b (4096 x 2160@60Hz) (Optional)
      Others 4x WiFi Antenna Holes
      1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
      1x DB9 Cutting Hole
      Optical Bonding Optional, contact us for more information

      Other Features
      OSD LCD On/Off, Auto, Menu, Up and Down Multi-language
      Speaker AMP 10W + 10W

      Operating System
      Windows Windows 10, Windows 11
      Linux Linux kernel 5.X

      Power
      Power Adapter Optional AC/DC 12V/5A, 60W
      Power Management Power Ignition Management (by Optional Module)
      Power Mode AT, ATX
      Power Supply Voltage 9~36 VDC
      Power Connector 3-Pin Terminal Blcok
      Power Protection OVP (Over Voltage Protection)
      OCP (Over Current Protection)
      Reverse Protection

      Environment
      Operating Temp. 0°C to 60°C
      Storage Temp. -20°C to 70°C
      Relative Humidity 10%~80% (non-condensing)
      IP Level IP 65 Compliant Front Panel
      Vibration With SSD: 1.5 Grms, 5 - 500 Hz, 0.5 hr/axis
      With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
      Shock 20G, half sine, 11ms
      Standards / Certification UL Safety: UL62368-1, 3rd Ed., (cULus)
      CE, FCC Class A

      Physical
      Dimension VIO-215-PC100-EHL: 377 (W) x 301 (D) x 64.7 (H) mm
      VIO-215-PC100-EHL-1E: 377 (W) x 301 (D) x 87.7 (H) mm
      Weight VIO-215R-PC100-EHL: 5.16 kg
      VIO-215C-PC100-EHL: 5.12 kg
      VIO-215R-PC100-EHL-1E: 5.32 kg
      VIO-215C-PC100-EHL-1E: 5.24 kg
      Mounting VESA Mounting Holes 75 x 75mm, 100 x 100mm

      • All product specifications and information are subject without notice.
    • Order Information
      Available Models
      Model No. Description
      VIO-215R-PC100-EHL 15" XGA Resistive Touch Thin Frame Panel PC with Intel® Celeron® Processor J6413
      VIO-215C-PC100-EHL 15" XGA Capacitive Touch Thin Frame Panel PC with Intel® Celeron® Processor J6413
      VIO-215R-PC100-EHL-1E 15" XGA Resistive Touch Thin Frame Panel PC with Intel® Celeron® Processor J6413, 1x Universal I/O Bracket, 1x PCIe
      VIO-215C-PC100-EHL-1E 15" XGA Capacitive Touch Thin Frame Panel PC with Intel® Celeron® Processor J6413, 1x Universal I/O Bracket, 1x PCIe

      Optional Accessories
      Model No. Description
      1-E09A06008 Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
      SFICBL022 Power Cord, 3-pin US Type, 180cm
      1-TPCD00002 Power Cord, European Type
      1-TPCD00001 Power Cord, 3-pin UK Type, 180cm
      3-DINR-0003 DIN-Rail Mount Kit

      Packing List
      1x VIO-215-PC100-EHL Series
      10x Panel Mount Kit
      1x Screw Pack
